Product Details
Product Description

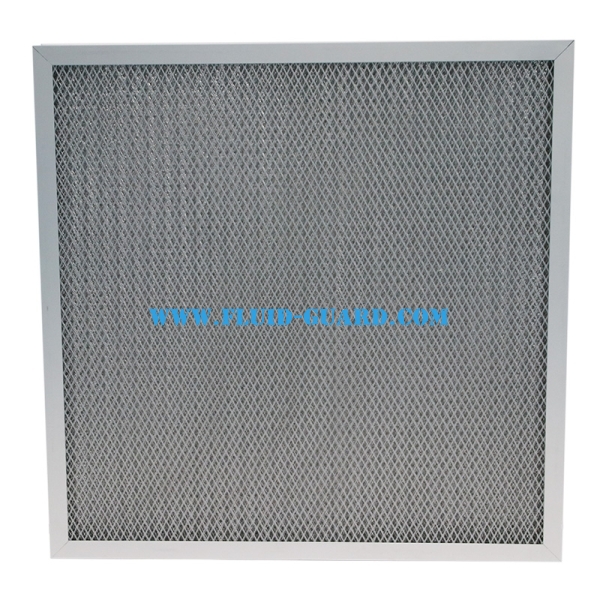

Metal Mesh air filters offer a semi-permanent, cleanable air filtration solution, suited for outdoor environments. Metal Mesh filters are ideal for use in harsh environments where rugged, washable and reusable filters are most appropriate. Metal Mesh filters are available in all frame configurations, from roll-formed channels to ultra-thin stamped sheet metal.
Application
Suitable as pre-filter in ventilation systems of office buildings, conference rooms, hospitals, shopping malls, gymnasium, airports and other huge civil architecture as well as pre-filter in general factories of clean rooms.
Advantages
Aluminum frame will reduce the frequency of cleaning and maintenance.
Multi-layer corrugated aluminum mesh, low initial pressure drop, high dust-holding capacity and long service life.
Light in weight, compact in structure, easy to install.
Can be washed repeatedly with compressed air or cleaning fluid.
Good fireproof property, greatly reduce the risk of fire.
Good heat dissipation property, extend the life of the fan motor.
Meet EN779:2012.

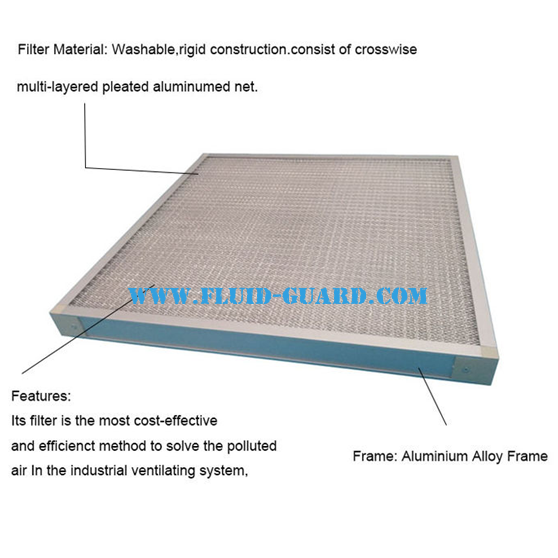

Material Instructions
Media: Multi-layer corrugated metal mesh.
Frame: Aluminum alloy or stainless steel.
| Product Specification | |||
| Item | Metal mesh air filter | Outer Frame | detachable aluminum frame |
| Media | Multilayered wave expanded aluminum mesh,cross overlapping arrangement,different aperture arrangement,change the airflow direction many times,increase the dust catching force and efficiency. | ||
| Efficiency | (EN779:2002)G3,G4 (ASHRAE 52.2:2007)MERV6,MERV7 | ||
| flame rating | DIN53438 class F1 | Temperature | 250℃ |
| Fianl pressure drop | 250Pa | ||
| Application | Air filter for general building air conditioning systems | ||
| Primary air filtration for industrial-grade ventilation systems | |||
| Widely used in acid, alkali and high humidity environment | |||
| Air filter for car assembly workshop spray wax room | |||
