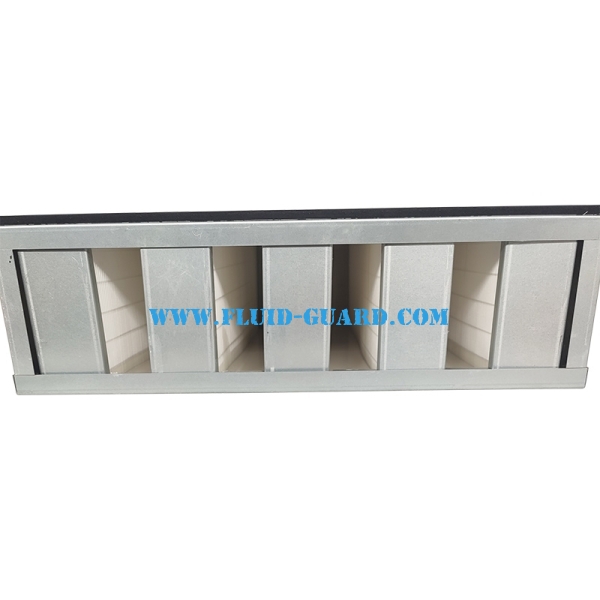

Product Details
Product Details
Fine fibre ensures that filter maintains its efficiency throughout its life in the system
Suitable for variable airflow
High dust holding capacity Robust design
Parameter
| Model | Dimensions | No. of Folds | Media Area (m2) | Initial Pressure Drop (Pa) Air Flow (m3/h) | |||
| W×H×D (mm) | F5(40~45%) | F6(60~65%) | F7(80~85%) | F8(90~95%) | |||
| 12×24×2 | 290×595×46 | 9 | 0.46 | 40 250 | 60 250 | 70 250 | 100 250 |
| 24×24×2 | 595×595×46 | 17 | 0.9 | 40 500 | 60 500 | 70 500 | 100 500 |
| 12×24×3 | 290×595×69 | 9 | 0.7 | 40 400 | 60 400 | 70 400 | 100 400 |
| 24×24×3 | 595×595×69 | 17 | 1.4 | 40 790 | 60 790 | 70 790 | 100 790 |
| 12×24×4 | 290×595×90 | 9 | 0.9 | 40 500 | 60 500 | 70 500 | 100 500 |
| 24×24×4 | 595×595×90 | 17 | 1.8 | 40 1000 | 60 1000 | 70 1000 | 100 1000 |
| 12×24×6 | 290×595×150 | 9 | 1.5 | 40 850 | 60 850 | 70 850 | 100 850 |
| 24×24×6 | 595×595×150 | 17 | 3.0 | 40 1700 | 60 1700 | 70 1700 | 100 1700 |
| 12×24×12 | 290×595×292 | 9 | 3.0 | 40 1700 | 60 1700 | 70 1700 | 100 1700 |
| 24×24×12 | 595×595×292 | 17 | 6.0 | 40 3400 | 60 3400 | 70 3400 | 100 3400 |
Application
Built-up filter banks, rooftops, split systems, free-standing units, package systems and air handlers
Remarks:
1. Tolerance of initial pressure drop is ±10%.
2. Recommended final pressure drop is 450Pa.
3. Tolerance of dimension is ±3mm.
4. Other dimensions are available upon request.
