10 Inch Activated Carbon Pure Water Filter Cartridge CTO-Fluidguard

PRODUCTS

Current position：PRODUCTS > Filter Element > Water Filter Element >

: 10 Inch Activated Carbon Pure Water Filter Cartridge CTO

Features:

Products Name:Activated carbon water filter

Filter Material: Compressed activated carbon

Application:Well water,Underground water,River Water
Get Quotation

Product Details

Activated carbon water filter

Fluidguard activated carbon water filter is a recently developed element for depth filtration, having activated carbon particles mixed with adhesive and sintered together under fairly high temperature, and then shaped by squeezing continuously.

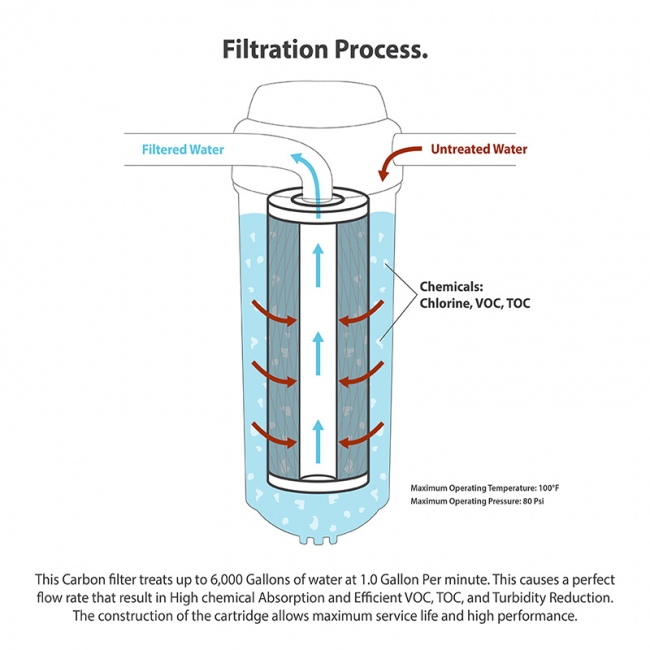

Fluidguard activated carbon water filter element has an excellent capacity to absorb contamination like particulate, rust, residual chlorine, peculiar smell, color, organic compound from water with typical character as a tubular element.

Product name	Activated carbon water filter
Working pressure drop	0.1~0.2kgf/cm
Max pressure borne	7kgf/cm
Max differential pressure	4kgf/cm
Max working temperature	60°C
Max flow rate	8LPM@10’’ with 0.15kgf/cm dp
Surface area	800~1000m2/g
Dimension	ID: 30mm; OD: 65mm, 115mm
Length	10’’, 20’’, 30’’, 40’’
Iodine absorption value	900mg/g
Benzene absorption value	20~25%
Methyl blue absorption value	13~16ml/g
COD removal rate	58.25%
Residual chlorine removal rate	≥96.83%

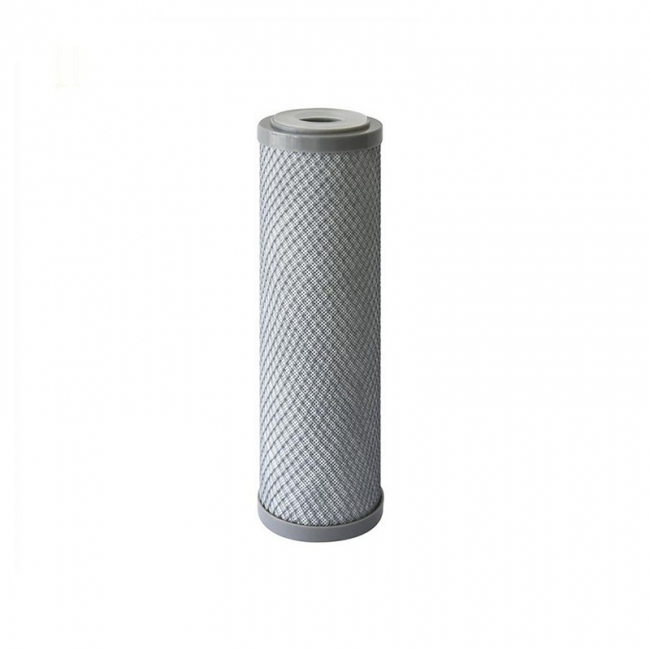

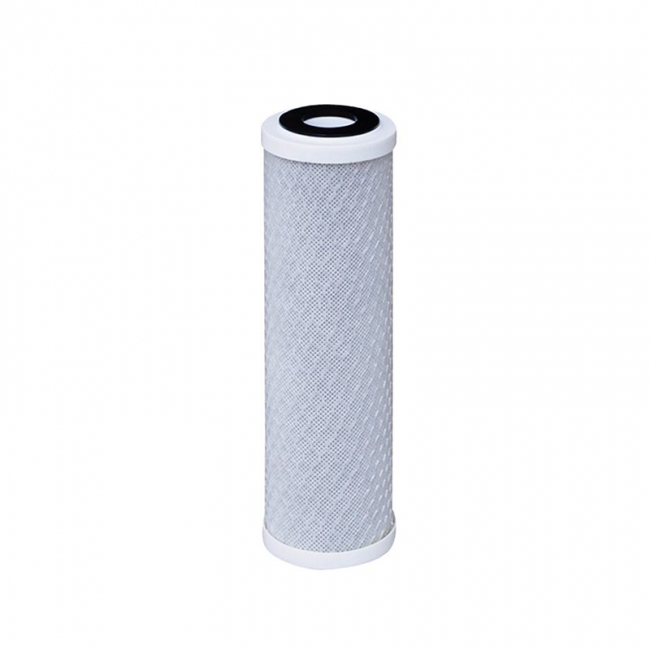

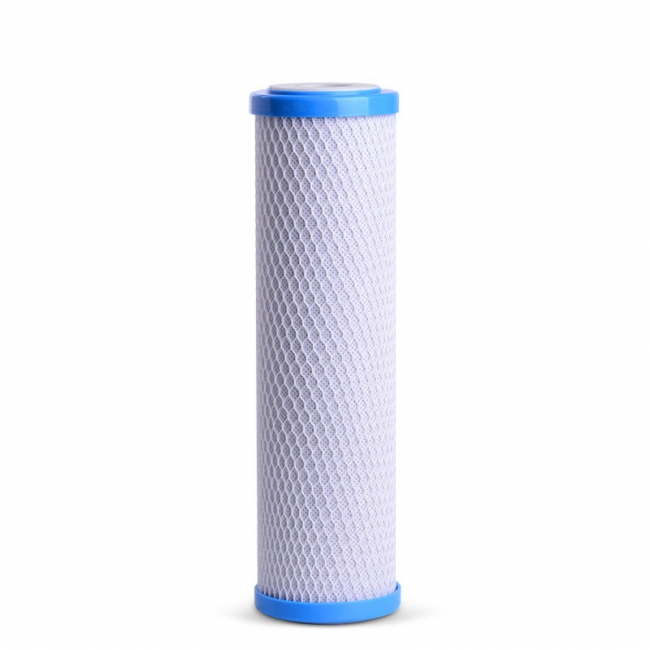

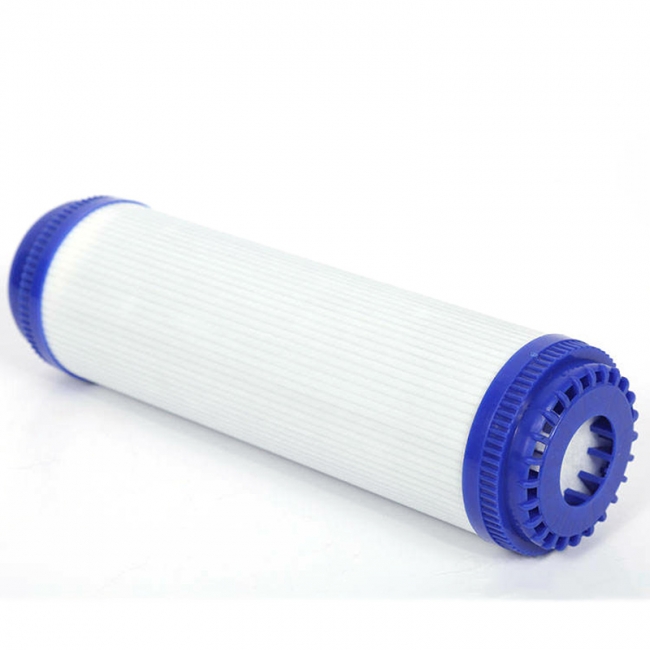

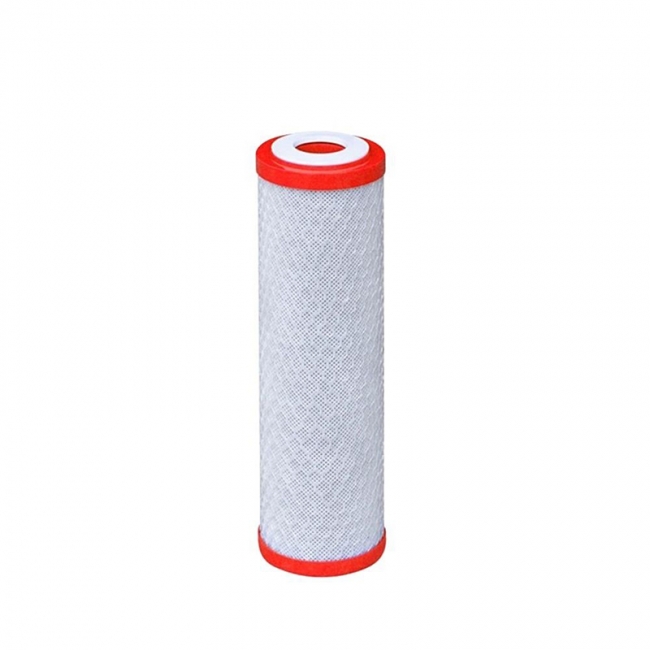

Product Photos:

activated carbon water filter (11)

activated carbon water filter (12)

activated carbon water filter (16)

activated carbon water filter (17)

activated carbon water filter (18)

activated carbon water filter (19)

10 Inch Activated Carbon Pure Water Filter Cartridge CTO
