Best Spun Filter Cartridge 5 Micron 30" Polypropylene Filter Cartridge For Water Purifier

Best Spun Filter Cartridge 5 Micron 30" Polypropylene Filter Cartridge For Water Purifier

Features:

Model:Sediment filter cartridge

Usage:WaterTreatment

Material: Polypropylene (PP)

Get Quotation

Product Details

Melt blown water filter

Fluidguard melt blown filter is constructed by melt super fine polypropylene (PP) circled around the core without any chemical adhesive.

The PP fiber randomly forms three dimensional micro-porous structure, which can provides surface, depth, and coarse filtration all by itself.

Large dirt-holding capacity, high filtration accuracy, and small differential pressure are available by its fiber densification & thinness. Besides, Gradually densified structure and lessened pore size help to guarantee an effective filtration for particle removal like suspended matter, particulate, rust etc, and make it a longer service time.

Fluidguard melt blown is your reliable choice with superb filtration efficiency and highly prolonged service time!



Product name

Melt blown water filter

Dimension

OD- 63mm, 115mm; ID- 28mm, 30mm

Length

10”, 20”, 30”, 40”

Material

Polypropylene (PP)

Cap End

Polypropylene (PP)

Core

Polypropylene (PP)

Gasket/Seal

Silicon rubber, EPDM,NBR, Fluororubber

Filtration rating

1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um

Max operation temperature

65°C

Max pressure difference

2.0Bar@ 21°C

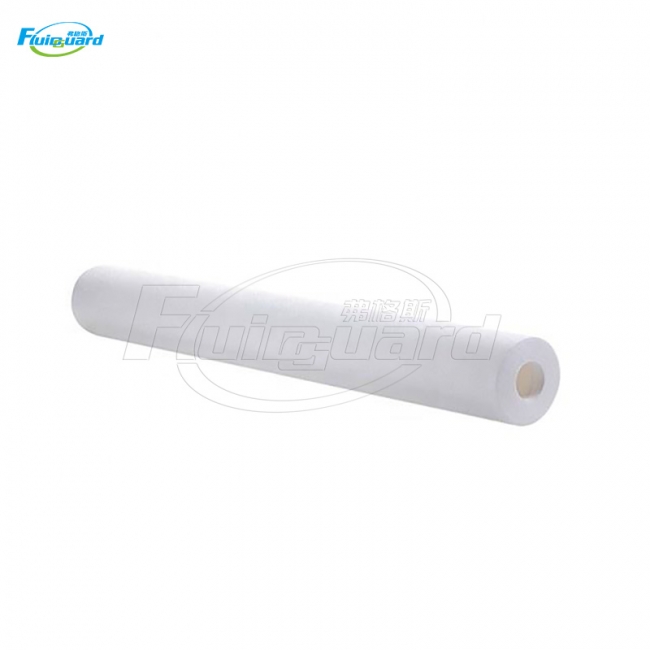

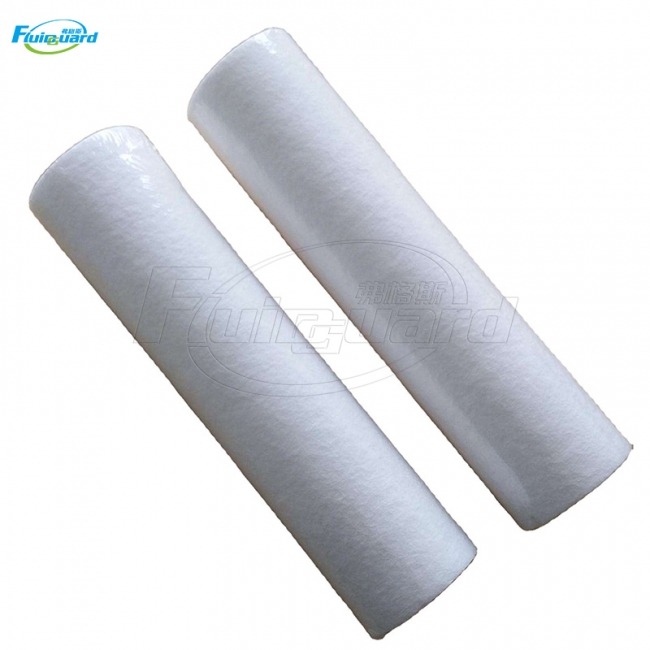

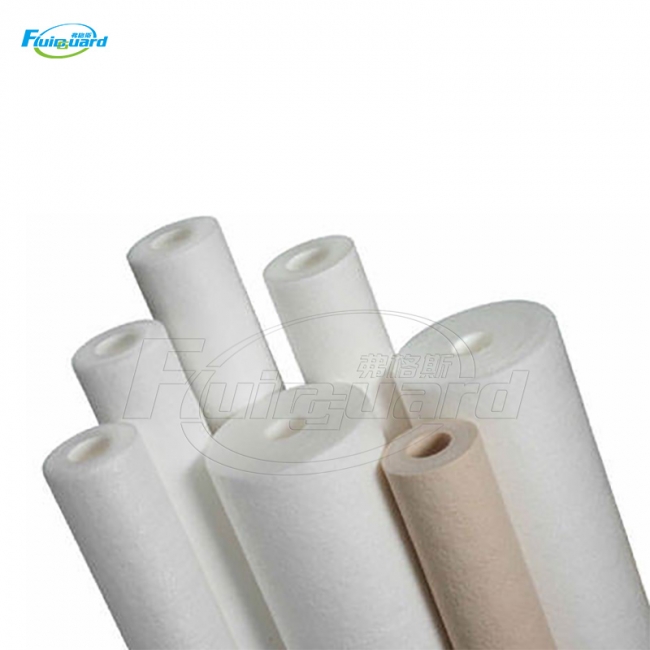

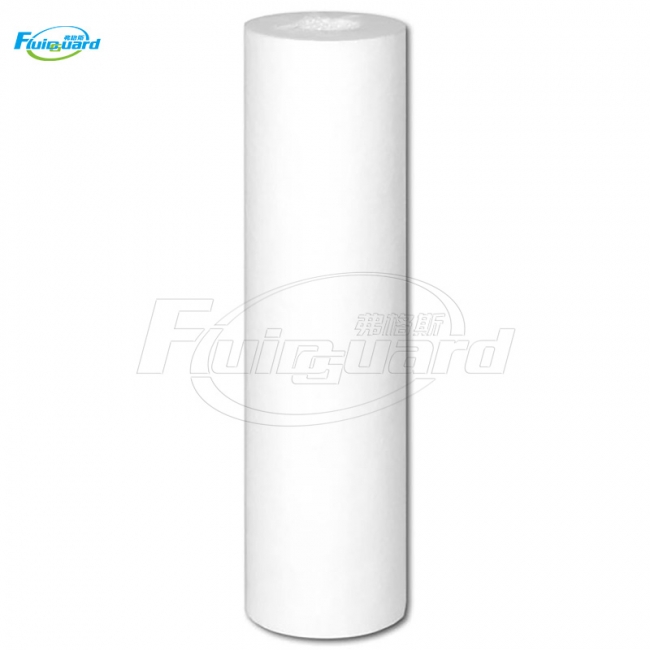

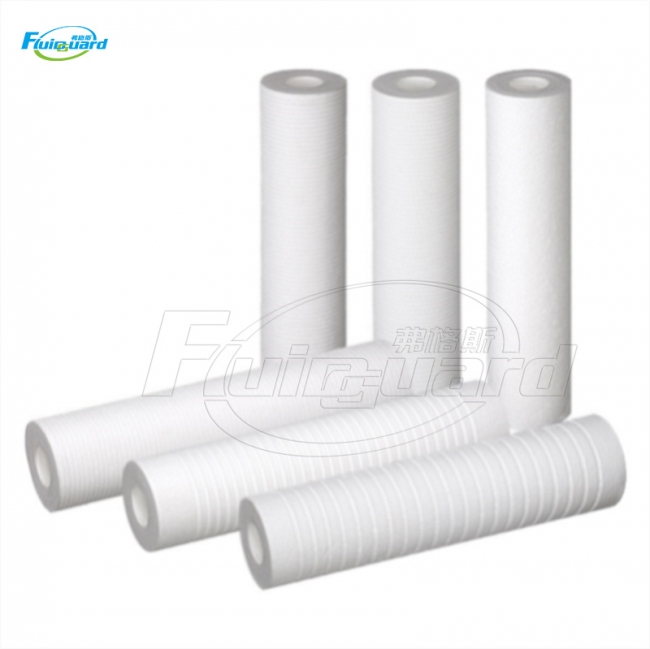

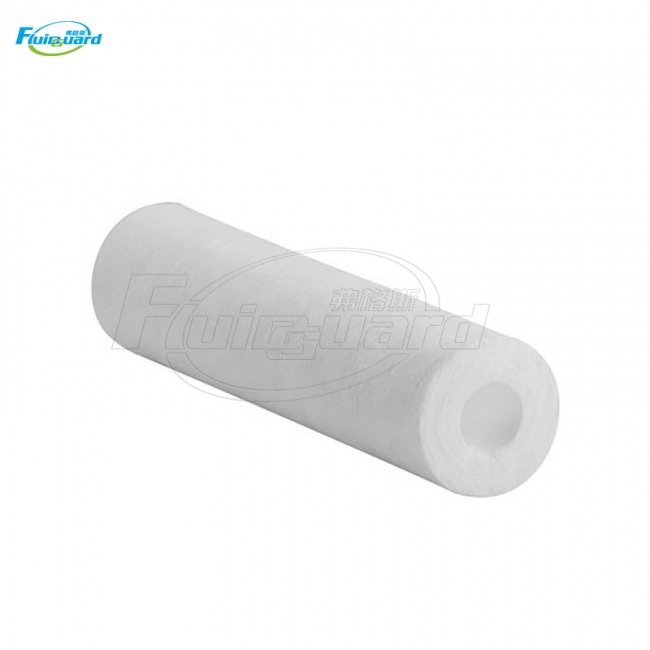

Product Photos:
