Product Details
Description

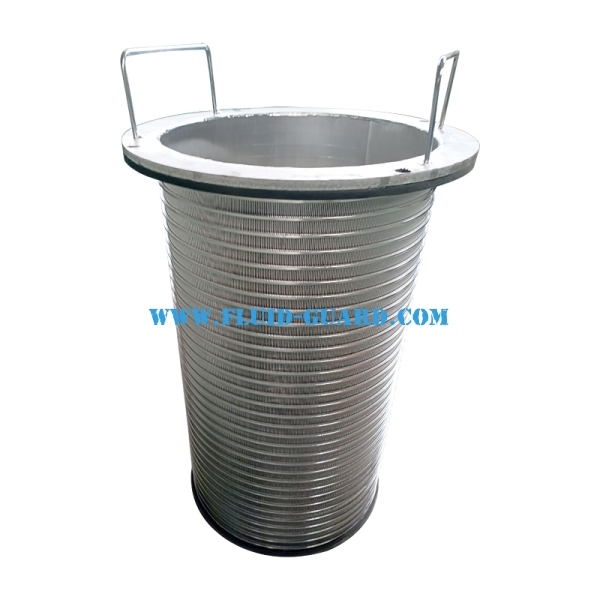

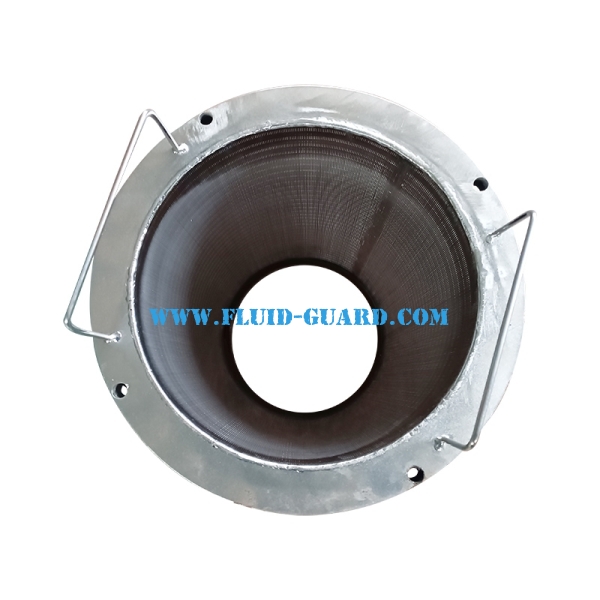

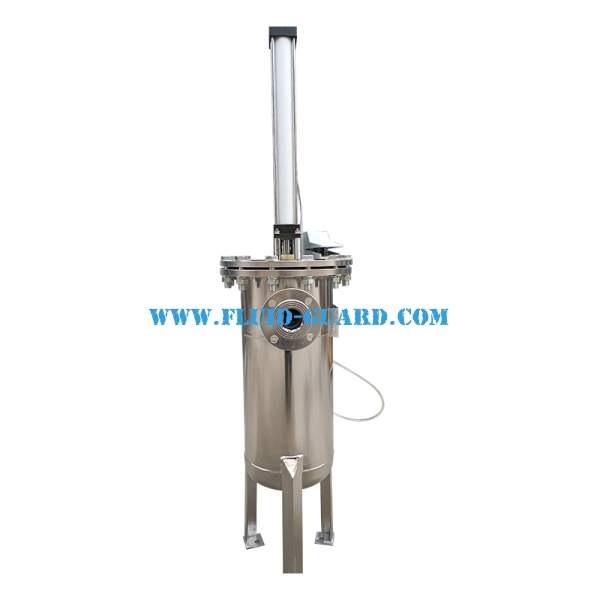

The Bernoulli Filter removes particulate impurities on the inner surface of the filter element through mechanical scraping, and it can work continuously online. It is mainly designed for high-viscosity filtration, suitable for viscosity up to 800,000mPas, micron range of 50-1500um, precise
filtration, can scrape impurities off the surface of the filter element as quick as possible, thereby efficiently removing more impurities, suitable for filtration of water and various viscous liquids.
Model | ADFA22 | |
1 | Filter area(M2) | 0.22 |
2 | Filter element No. | 1 |
3 | Capacity(L) | 24 |
4 | Inlet/Outlet | DN50 |
5 | Sewage | DN40 |
6 | Applicable liquid | Water or viscous liquid |
7 | Screen size | 50-400 microns |
8 | Pressure | 1MPA |
9 | Temperature | 0~80℃ |
10 | Cleaning DP | 100KPA(adjustable) |

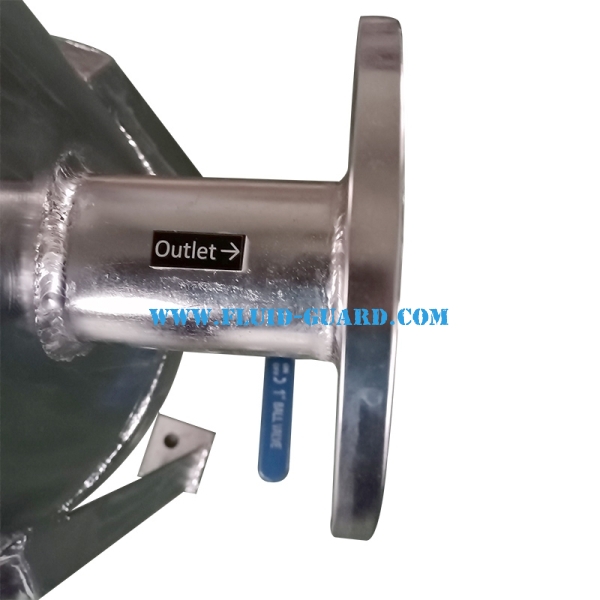

11 | Inlet/Outlet Connection | DN50 flange or thread(please indicate this) |
12 | Filter element type | MS |
13 | Filter housing material | Stainless steel 304 |
14 | Filter element material | Stainless steel 316L |
15 | Piston material | Stainless steel 316L |
16 | scraper material | PTFE |
