Pneumatic Driven Bernoulli Type Self Cleaning Filter for High Viscosity Liquid

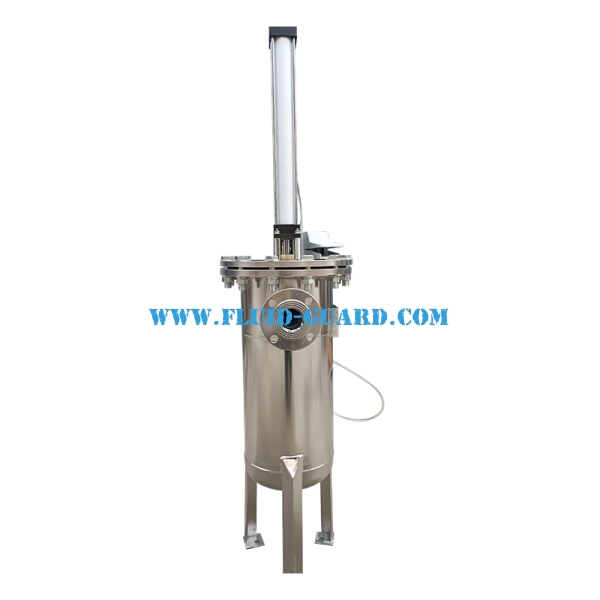

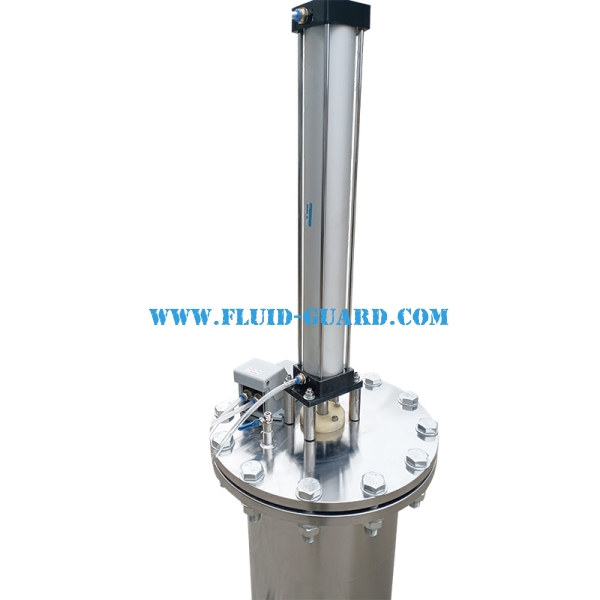

Pneumatic Driven Bernoulli Type Self Cleaning Filter for High Viscosity Liquid

Features:

Material: Stainless steel

Type: Self cleaning filter

Service life 10 years

Get Quotation

Product Details

Description



The Bernoulli Filter removes particulate impurities on the inner surface of the filter element through mechanical scraping, and it can work continuously online. It is mainly designed for high-viscosity filtration, suitable for viscosity up to 800,000mPas, micron range of 50-1500um, precise

filtration, can scrape impurities off the surface of the filter element as quick as possible, thereby efficiently removing more impurities, suitable for filtration of water and various viscous liquids.



Model

ADFA22

1

Filter area(M2)

0.22

2

Filter element No.

1

3

Capacity(L)

24

4

Inlet/Outlet

DN50

5

Sewage

DN40

6

Applicable liquid

Water or viscous liquid

7

Screen size

50-400 microns

8

Pressure

1MPA

9

Temperature

0~80

10

Cleaning DP

100KPA(adjustable)

11

Inlet/Outlet Connection

DN50 flange or thread(please indicate this)

12

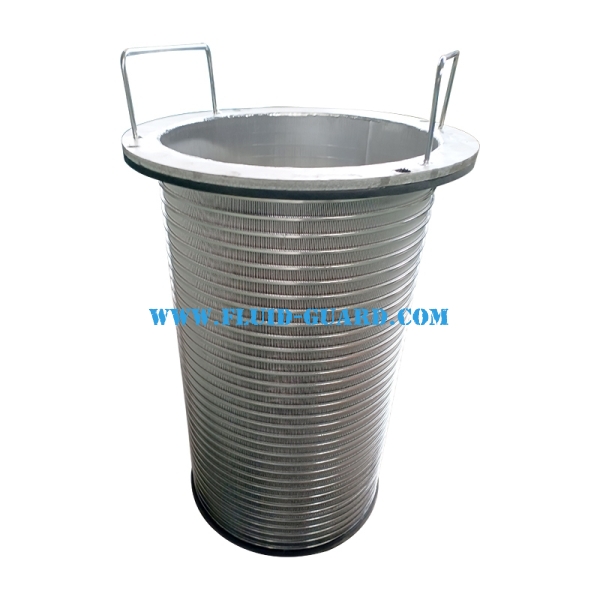

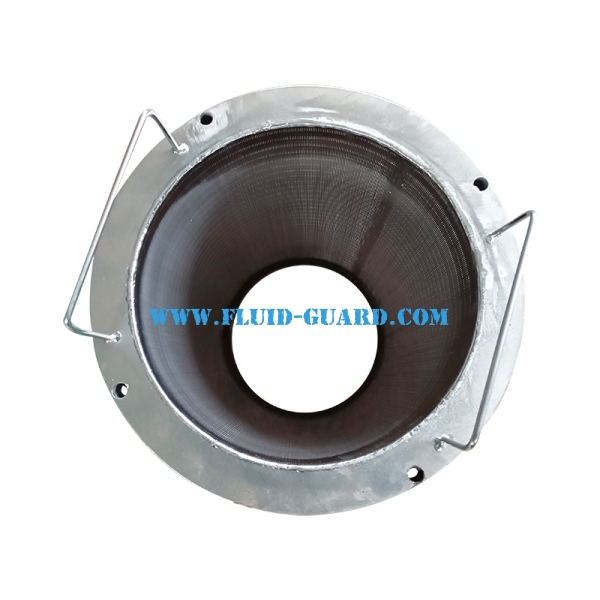

Filter element type

MS

13

Filter housing material

Stainless steel 304

14

Filter element material

Stainless steel 316L

15

Piston material

Stainless steel 316L

16

scraper material

PTFE
