Product Details
Description

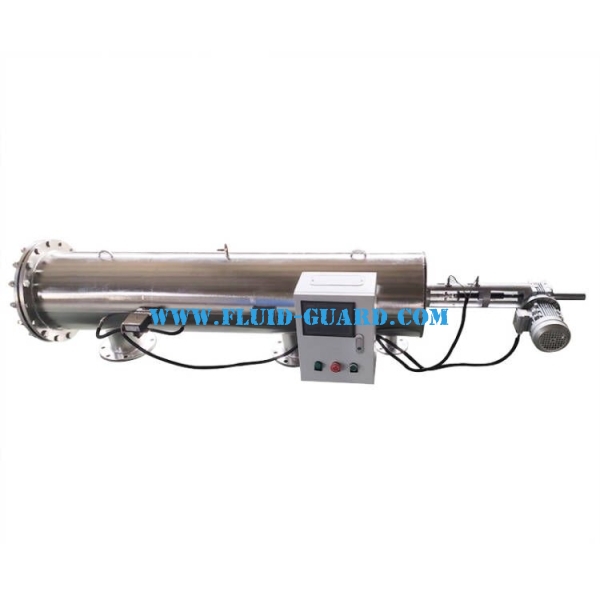

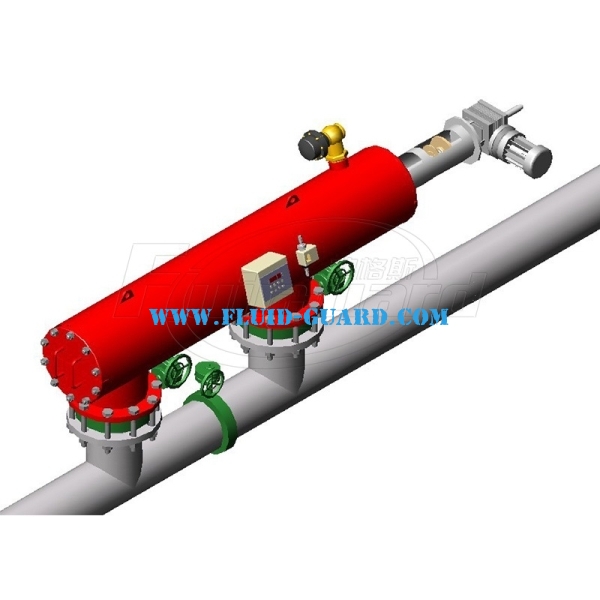

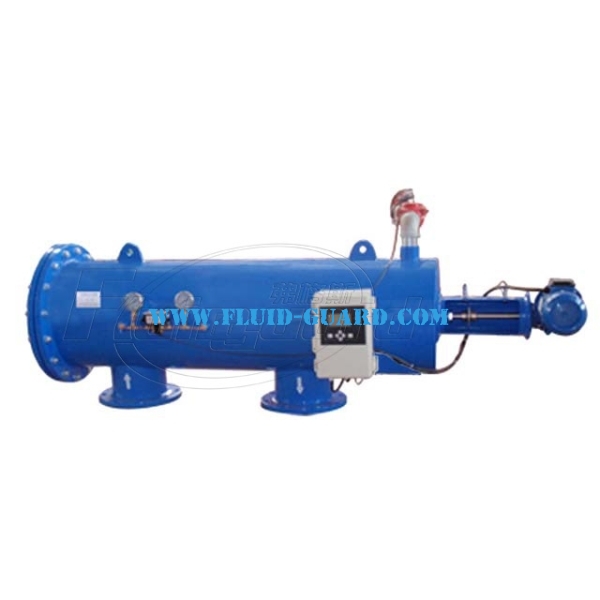

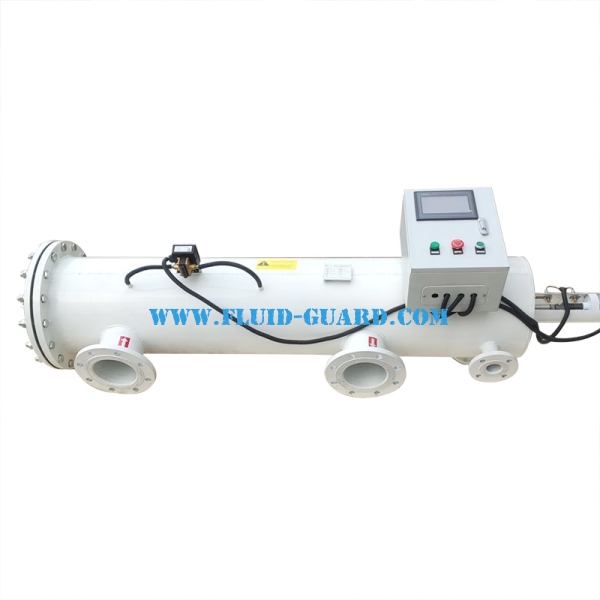

The suction self-cleaning filter is cleaned by a motor-driven suction nozzle and can be used under low-pressure pipelines. The filtering level is high. The control method adopts timing and pressure difference control. It adopts horizontal installation and is easy to maintain. The suction nozzle cleaning method does not damage the filter screen, and the filter screen has a long service life.
Cleaning way | Suction |
Filtration Micron | 10~800um |
Max working pressure | 16bar |
Min working pressure | 2bar |
Pressure loss | < 0.1 bar |
Water consumption during backwash | 0.5-1% of filtered water |
Backwash time | 10~180 seconds |
Water temperature range | 0 ~80 °C |
Control way | PLC, touch screen, time control, differential pressure control, manual control |
Shell material | carbon steel, 304, 316L |
Filter material | 304, 316L |
