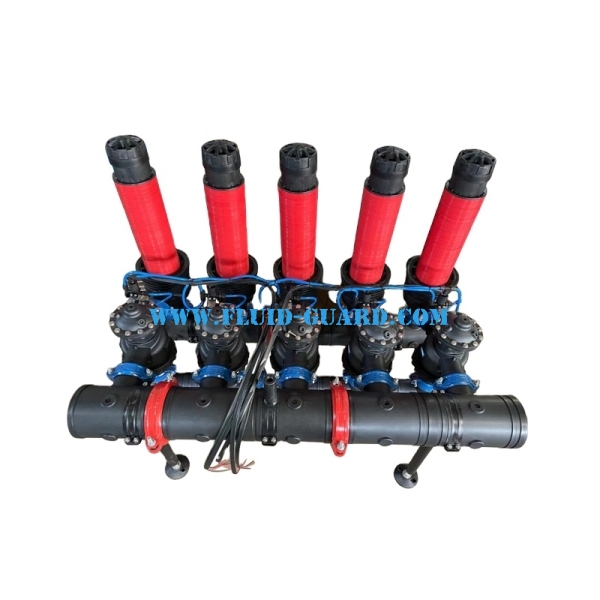

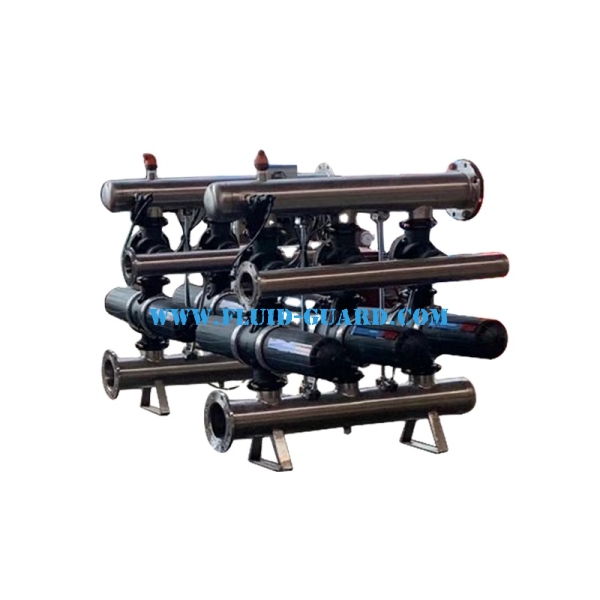

Automatic Backwash Water Irrigation Filter System for Agricultural Use

Working Principle:

There are thin grooves on the surface of the discs; the grooves in opposite direction between vicinity discs then make manycrossed points. The numbers of crossed points are different along with different disc precision. The crossed points form many chamber and irregular channels will intercept suspending particles better by the next crossed point after they are skipped from the previous crossed points.

When there are many impurities accumulated in the grooves between discs, the disc filter will change water direction of inlet and outlet, compressed discs will open automatically and compressed water will inject to discs and rotate the discs quickly. The discs will be cleaned through injecting water and fast rotating. Then the filter will change water direction again to renew filtration status.

Techinical Parameter:
