Produce Name:Self Cleaning Disc Filter
Application:Agricultural Irrigation
Operation:Auto or Manual
Get QuotationProduct Details

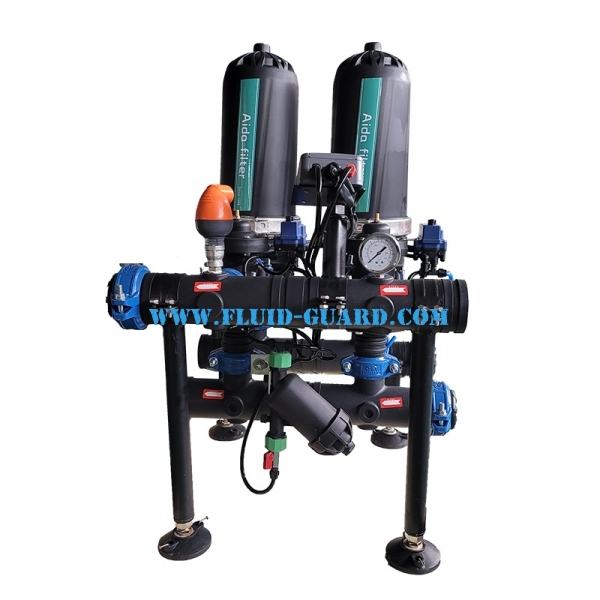

Full Name: Fluidguard Automatic self cleaning back wash disc filter system
Simply called as Disc filter
The disc filter can be working fully automatically, so can save a lot of labors. And the water flow don’t have to stop during back washing(cleaning process), so can ensure continuous water output.
Besides, it has the characteristics of low water consumption, low pressure loss, small footprint, easy operation, low cost, and so on.
Now the disc filter is favored by more and more water processing companies.
Working pressure | 0.2-0.8Mpa | Back wash pressure | 0.18-0.8Mpa |
Flow rate | 20-240 M3/h | Filter size | 120-4000 um |
Inlet pipe material | Plastic | Outlet pipe material | Plastic |
Drain material | Plastic | Housing | Plastic |
Voltage | N/A(using #5 battery) | Way of control | Pressure difference, Time or Manually |
Way of Back wash | Inside water back wash | Back wash time | 1 Minutes(adjustable) |
