Agricultural Irrigation Filters 3'' For Farm Water Treatment Systems

Agricultural Irrigation Filters 3'' For Farm Water Treatment Systems

Features:

Products Name:Self Cleaning Disc Filter

Application:Agricultural Irrigation

Operation:Auto or Manual

Get Quotation

Product Details

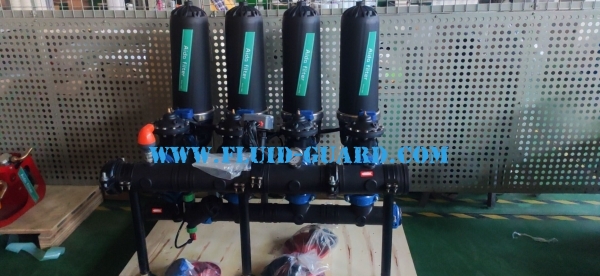

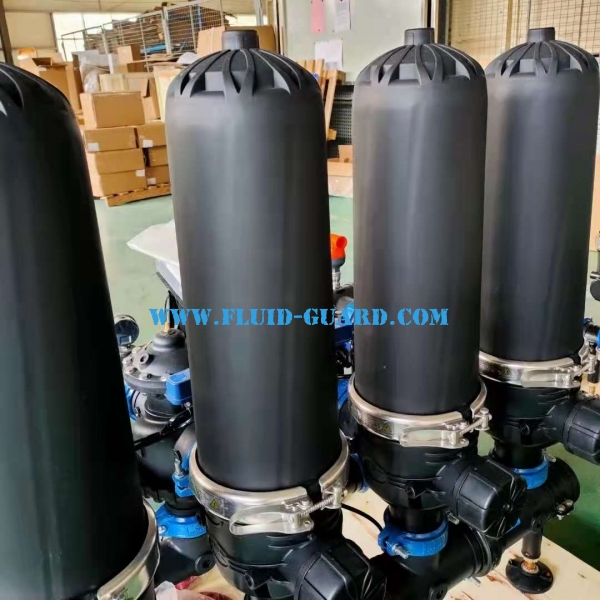

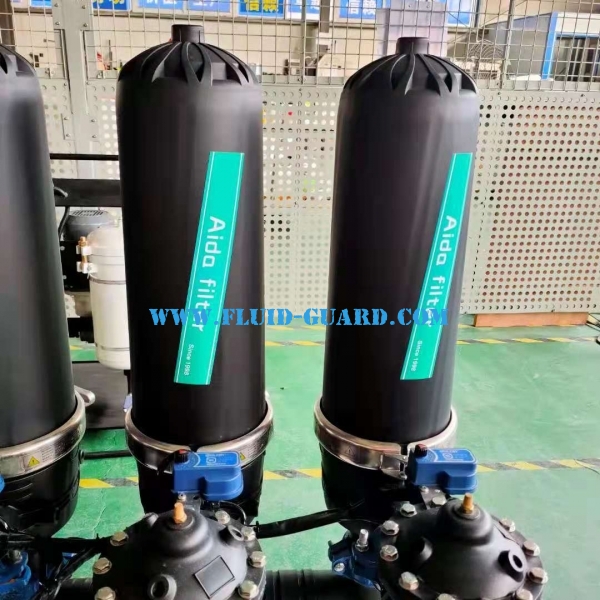

Full Name: Fluidguard Automatic self cleaning back wash disc filter system

Simply called as Disc filter

The disc filter can be working fully automatically, so can save a lot of labors. And the water flow don’t have to stop during back washing(cleaning process), so can ensure continuous water output.

Besides, it has the characteristics of low water consumption, low pressure loss, small footprint, easy operation, low cost, and so on.

Now the disc filter is favored by more and more water processing companies.



Working pressure

0.2-0.8Mpa

Back wash pressure

0.18-0.8Mpa

Flow rate

20-240 M3/h

Filter size

120-4000 um

Inlet pipe material

Plastic

Outlet pipe material

Plastic

Drain material

Plastic

Housing

Plastic

Voltage

N/A(using #5 battery)

Way of control

Pressure difference, Time or Manually

Way of Back wash

Inside water back wash

Back wash time

1 Minutesadjustable
