Material:SUS304 / SUS316 /Q235B
Application:Water Reuse system / Pure water system
Core Components:Pressure vessel, Pump, PLC
Get QuotationProduct Details
Specification
Influent turbidity | <20FTU |
Effluent turbidity | <3FTU |
Sewage interception capacity | 5-15Kg/m3 (filter material). |
Working temperature | 5-60℃ (special temperature can be customized) |
Working pressure | ≤0.6MPa |
Inlet water pressure | ≥0.04MPa |
Backwash water inlet pressure | ≥0.15 MPa |
Pressure difference between inlet and outlet | 0.01-0.015MPa |
Working method | pressure type |
Connections | Flange |
Operation mode | water flow from top to bottom |
Filtration speed | 15-100m3/h |
Operating cycle | 2-7 days |
Backwashing method | water washing, or air-water combined backwashing |
Water consumption for backwashing | 1-3% |
Backwash intensity | 4-15L/s·m2 |
Backwash time | 5-7 minutes |
Backwash expansion rate | 40-50% |
Features

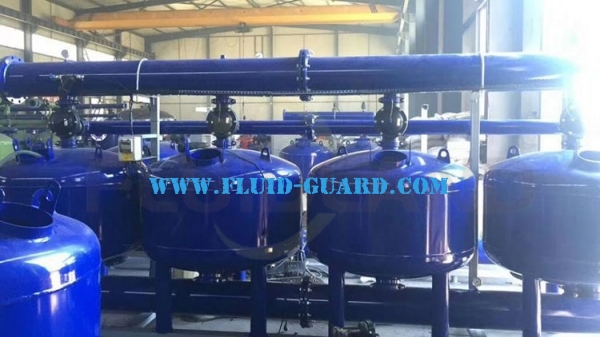

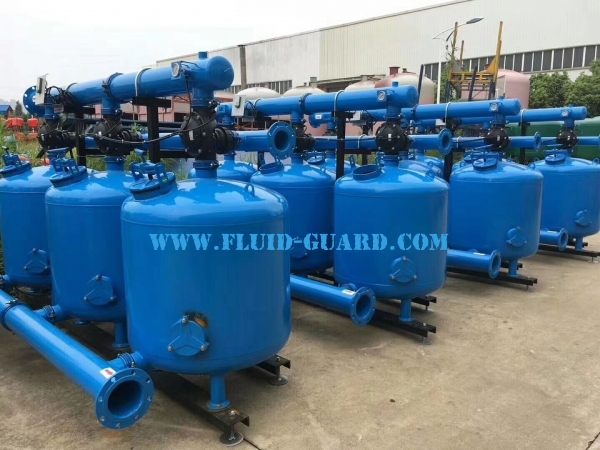

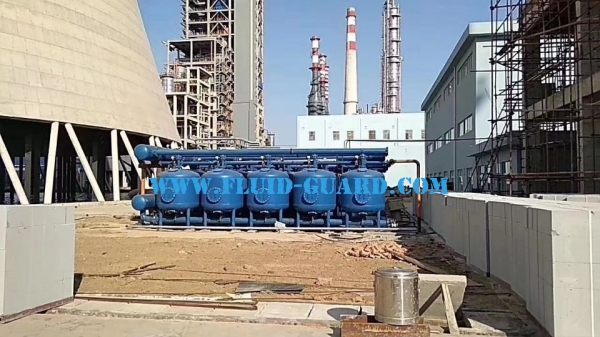

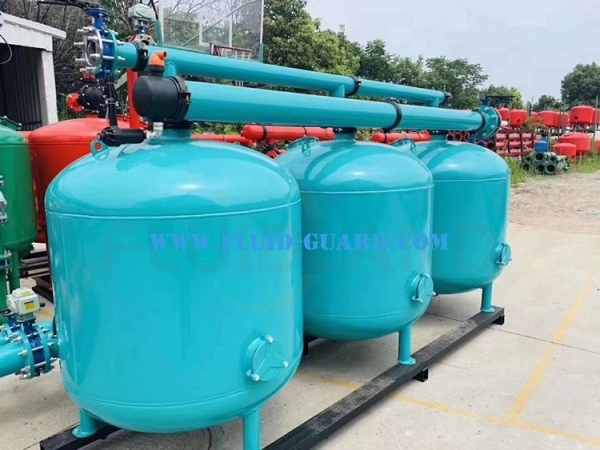

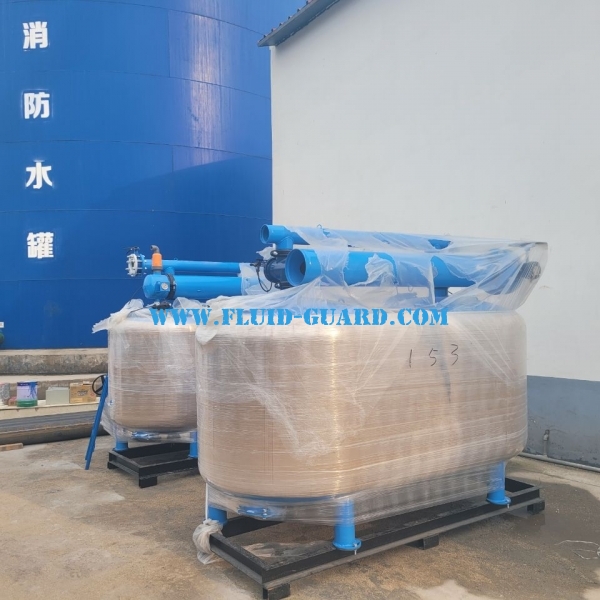

Stainless Steel or Carbon Steel Sand Filter / Active Carbon Filter
Also called Mechanical filter
Categories:
1: Multi Media filter ,
2: Active carbon filter,
3: Quartz sand filter etc.
4. Easy to manage, low operating cost
5. Filter media durable and recyclable
6. Most practical, cheapest and basic filtration equipment
Application
Mechanical Filter (Alao called pressure filter ), It's very important procedure in pure water pretreatment and water purify system.
In water treatment field, filtration is a kind of water purifying process.Mostly filter medias are silica sand (widely use),anthracite and so on. Filter medias include three type:granular, powdery and fibroid. Silica sand,anthracite, activated carbon, megnetite,ceramic, plastic ball, ect.
According to actual demands, some multi media filter (filter bed) will use two kinds of media layers. In industrial water recycling system, can effectively remove impurity,absorb oil ect, at last to reach
water recycling standard. Mainly functions are remove suspended or colloidal impurity, especially
effectively remove small particle and bacterium, also can remove BODs and COD in certain level.
