Product Name:Self Cleaning Filter
Housing Material SS304/SS316L/Carbon Steel/Duplex 2205
Application:Ground Water Sea Water
Get QuotationProduct Details
orking Principle
The liquid flows inside from the filter inlet. Part of the liquid flows through the central distribution tube. The liquid enters
filter elements from the upper and lower ends at the same time. Through the internal surface of filter element, the liquid goes
out from the filter outlet. Contaminants are intercepted by the elements and the filter cake slowly accumulates, which leads to
gradual pressure drop increase and flux decrease.
Product Data Sheets
Condition | New |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Energy & Mining |
After Warranty Service | Online support |
Local Service Location | Indonesia, Australia, South Africa |
Showroom Location | Indonesia, South Africa, Australia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Pressure vessel, Gear |
Place of Origin | China |
Brand Name | Fluidguard |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Min. Working DP | >0.15mPa |
Filtration Rating | 50-2000micron |
Standard Design Pressure | 0.7MPa/1.0MPa, higher pressure rating available |
Housing Standard | Factory Standard/ASME/PED/GB150 |
Fluid Working Temperature | 0-95°C |
Flowrate Range | 17-10560m3/h |
Self-cleaning DP | 50-70kPa |
Control System | Based on SIEMENS controller, parallel control mode of D.P. and time |
Gear Motor | 180W/370W, 3 phases, 380V, IP55, CCWU |

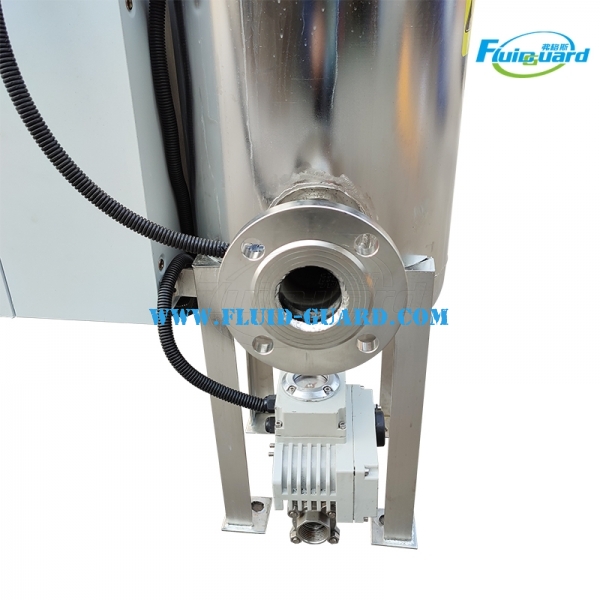

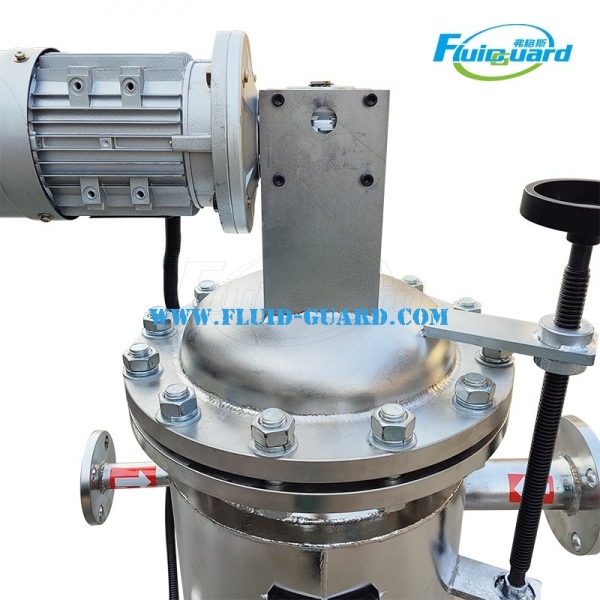

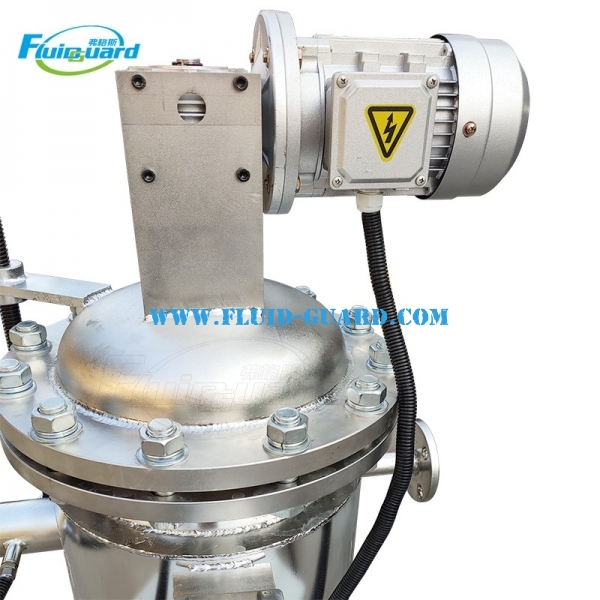

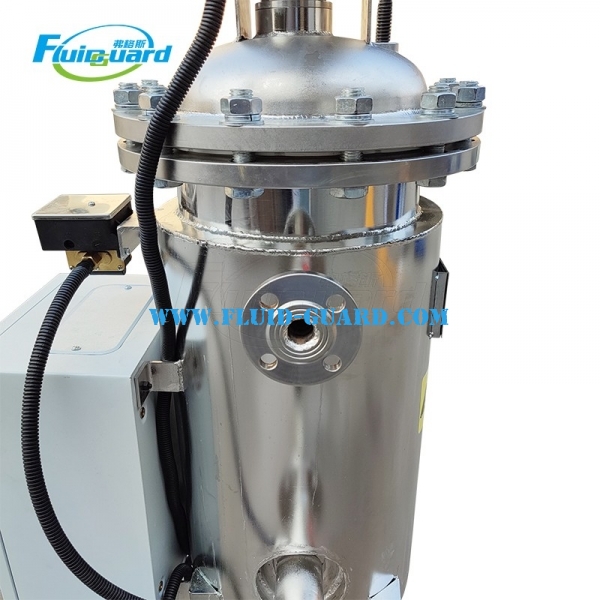

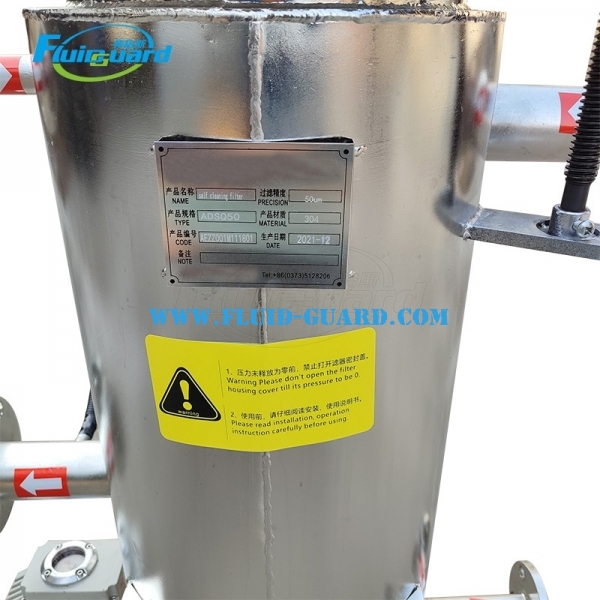

Product Details Photo:
