Full Auto Cleaning Brush Filter Automatic Self Cleaning Filter

Full Auto Cleaning Brush Filter Automatic Self Cleaning Filter

Features:

Product Name:Self Cleaning Filter

Housing Material SS304/SS316L/Carbon Steel/Duplex 2205

Application:Ground Water Sea Water

Get Quotation

Product Details

Working Principle

The liquid flows inside from the filter inlet. Part of the liquid flows through the central distribution tube. The liquid enters

filter elements from the upper and lower ends at the same time. Through the internal surface of filter element, the liquid goes

out from the filter outlet. Contaminants are intercepted by the elements and the filter cake slowly accumulates, which leads to

gradual pressure drop increase and flux decrease.



Product Data Sheets

Condition

New

Applicable Industries

Manufacturing Plant, Food & Beverage Factory, Energy & Mining

After Warranty Service

Online support

Local Service Location

Indonesia, Australia, South Africa

Showroom Location

Indonesia, South Africa, Australia

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

Pressure vessel, Gear

Place of Origin

China

Brand Name

Fluidguard

Warranty

1 Year

After-sales Service Provided

Online support

Min. Working DP

>0.15mPa

Filtration Rating

50-2000micron

Standard Design Pressure

0.7MPa/1.0MPa, higher pressure rating available

Housing Standard

Factory Standard/ASME/PED/GB150

Fluid Working Temperature

0-95°C

Flowrate Range

17-10560m3/h

Self-cleaning DP

50-70kPa

Control System

Based on SIEMENS controller, parallel control mode of D.P. and time

Gear Motor

180W/370W, 3 phases, 380V, IP55, CCWU

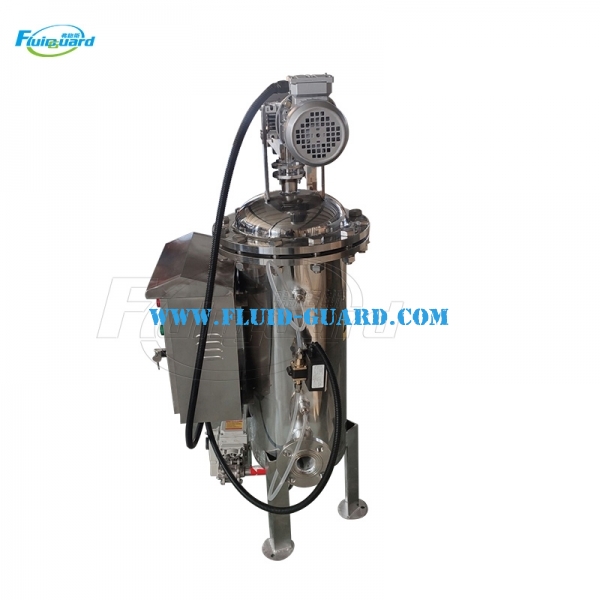

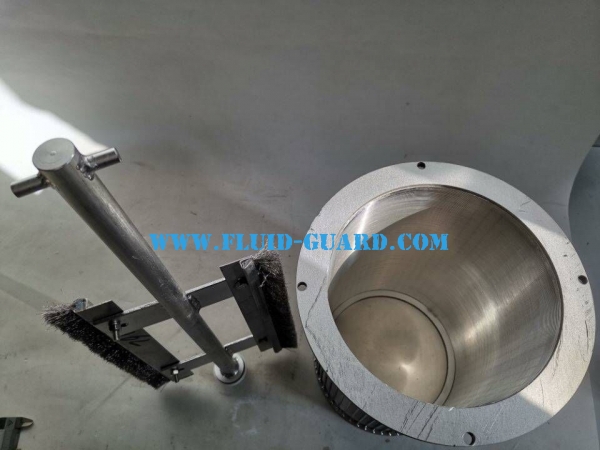

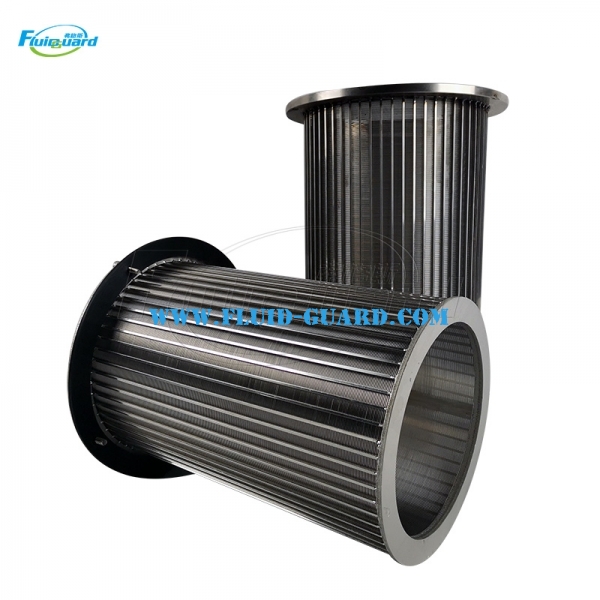

Product Details Photo:
