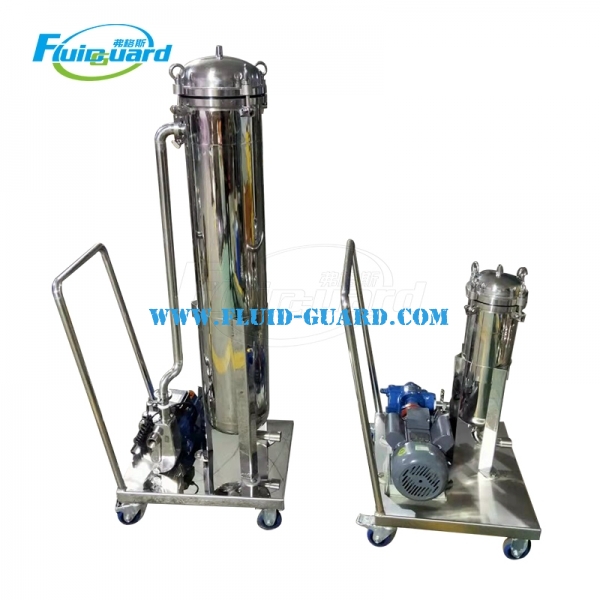

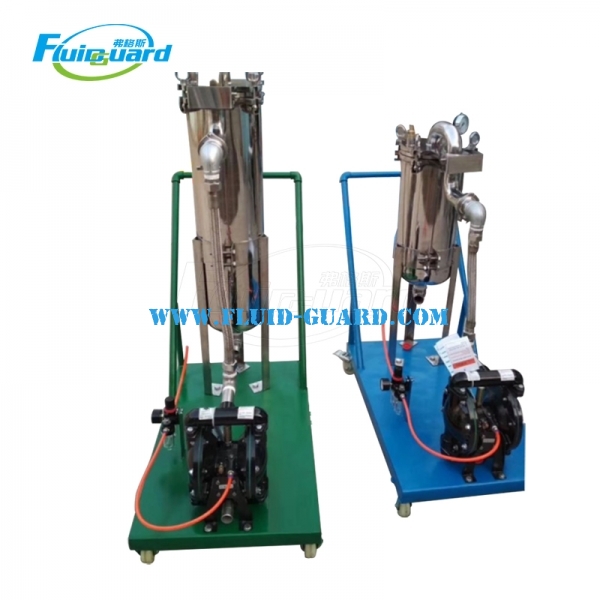

Movable Stainless Steel Bag Filter Housing

Movable Stainless Steel Bag Filter Housing

Features:

Products Name:Bag Filter Housing

Filter body:Stainess steel/Carbon steel

Application: liquid filtration

Get Quotation

Product Details

Specifciation

Bag filter is a pressure filter device, mainly filter tube, filter cover and quick opening mechanism, stainless steel filter bag reinforced mesh and other major components, the filtrate from the filter shell side of the entrance Tube into the filter bag, the filter bag itself is the device in the strengthening of the basket, the liquid penetration of the required level of the filter bag that can get a qualified filtrate, impurity particles blocked by the filter bag. The machine is easy to replace the filter bag, the basic filter without material consumption.

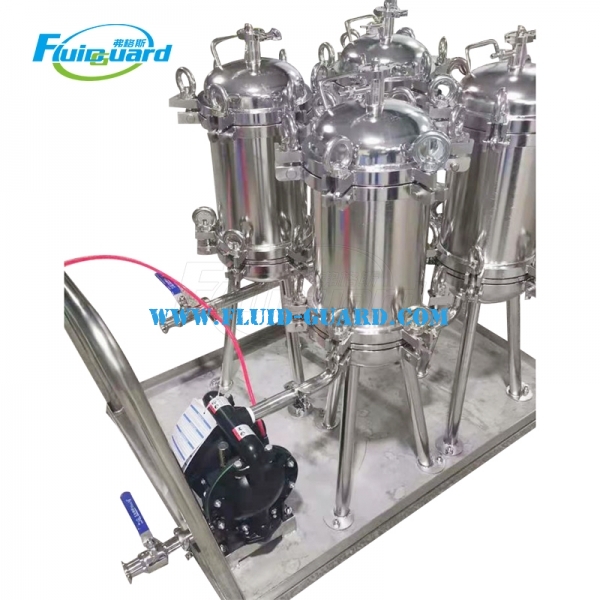

Bag filter can be divided into: single bag filter, multi-bag filter and sandwich filter. Multi-bag filter is suitable for large flow filtration. From 2 bags to 24 bags, the inlet and outlet flange diameter is φ40-450MM, and the maximum flow rate of a single machine is 90-1000m3/h. Can provide quick opening design, the filter bag replacement is very convenient. It is also suitable for occasions where you want to replace the filter bag after a long time.







Advantages

1. The probability of leakage from the side of the filter bag is small, and the filtration efficiency is higher.

2. The bag filter can bear greater working pressure, with small pressure loss, low operating cost and obvious energy saving effect.

3. The filter accuracy of the filter bag has been continuously improved, and has reached 0.5μm at present.

4. The bag filter has large processing capacity, small volume and large dirt holding capacity.

5. It is convenient and quick to replace the filter bag, and the filter does not need to be cleaned, saving labor and time.

6. The filter bag can be used repeatedly after cleaning, saving cost.

7. The bag filter has a wide application range, flexible use and various installation methods.





Application

1. Food and beverage:

 beer, wine filtration; juice and soda Filtration ; Syrup, oral liquid filtration; Additives, oil filtration

2. Water treatment:

urban water supply, industrial water filtration; Power plant condensate filtration

3. Automotive:

 electrophoretic paint filtration; varnishes and topcoats filtration

4. Electronics industry:

 lithium battery coolant filtration

5. Metal processing:

cutting fluid and coolant filtration; Lubricating oil filtration

6. Fine chemicals:

 catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration

7. Petrochemical industry:

aviation kerosene filtration; Diesel and fuel filtration ,graphene, ink filtration





Products Details:
