Automatic Self Cleaning Back Wash Disc Water Fiter for Farm Drip Irrigation

Working principle and Features:

This automatic self cleaning back wash disc water fiter for farm drip irrigation is composed of a group of discs with grooves on both sides. The intersection formed by the groove edge can intercept the solids in the water, effectively remove the organic and inorganic substances in the raw water, and has a high catching ability for soft impurities and fiber soft impurities.

At the same time, it has the functions of surface interception and deep condensation, which greatly improves the filtering effect.

It has the characteristics of high efficiency backwashing, automatic continuous operation, low water consumption, small area taken and reliable operation.

The backwashing process of the filter system is alternately carried out, and the automatic switching between working and backwashing states can ensure continuous water output and low system pressure loss.

Therefore, the technical advantages of the automatic backwashing disc filter are very obvious.

Typical Application areas：

Irrigation systems

Surface and Ground Water

Equipment Protection

Nozzle Protection

Effluent and Water Re-Use

Town Water Supply

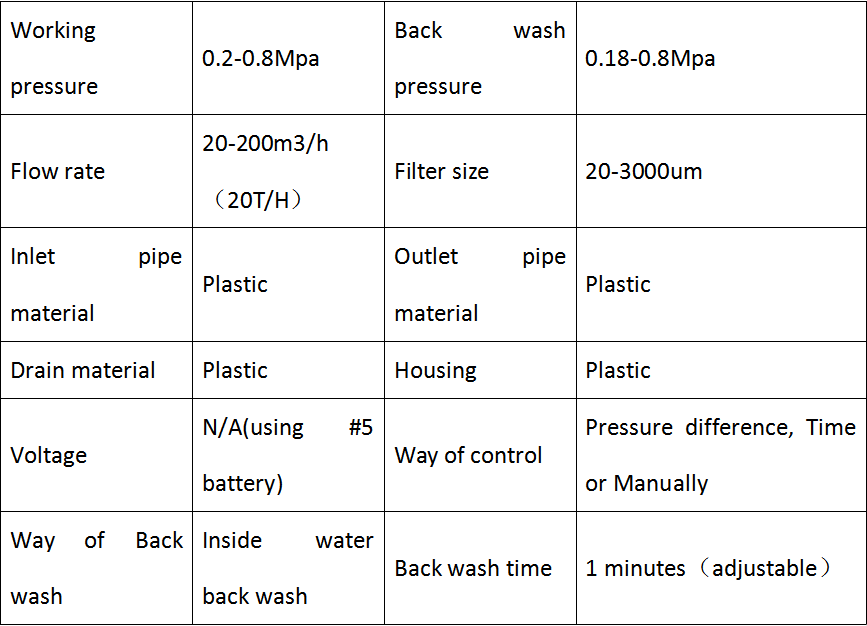

Technical parameters:
