Carbon Steel Auto Clean Self-Cleaning Strainer Horizontal Self Cleaning Filter

Carbon Steel Auto Clean Self-Cleaning Strainer Horizontal Self Cleaning Filter

Features:

Product Name:Horizontal Self Clean Filter

Housing Material SS304/SS316L/Carbon Steel/Duplex 2205

Application:Drinking water, Waste water.

Get Quotation

Product Details

Features

1. Fully automatic back washing, continuous flow during back washing;

2. 2 stages filtration, high filtration precision, large amount of treated water;

3. Suitable for a lot of water qualities, such as tap water, surface water, circulatingcooling water, etc.;

4. Compact structure, simple installation and easy maintenance;

5. Multi-layer sintered mesh has good filtering effect, high strength and long life

Applications:

1. Industry: Plastic&textile, Food&beverage, Chemical, steel industry, Power generation, Petrochemical, Mining, Electronics, Pharmaceutical, Pulp&paper, Automotive

2. Agricultural irrigation.

3. Sea water: Desalination

4. Municipal: Water supply, Drinking water, Waste water.



Product Data Sheets



Max Flow rate

80M3/h

150M3/h

300M3/h

400M3/h

Screen area

0.15M2

0.33M2

0.54M2

0.68M2

Filter ratings

25~800µm(as per client request)

Min working pressure

2 bar

Max working pressure

10bar(can be reached to 16 bar as per client request)

Max working temperature

0~60°C

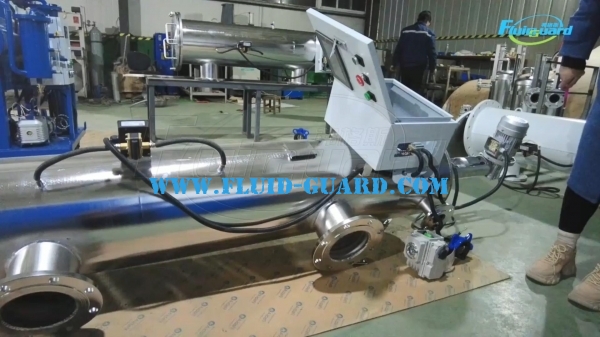

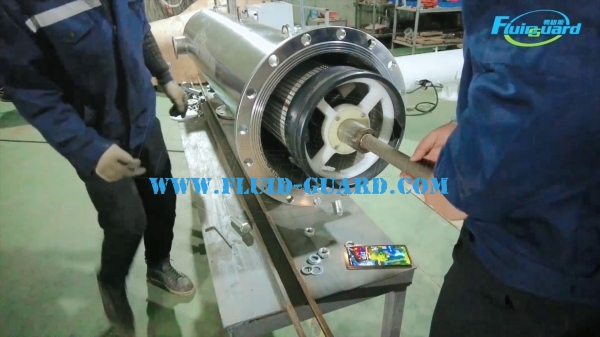

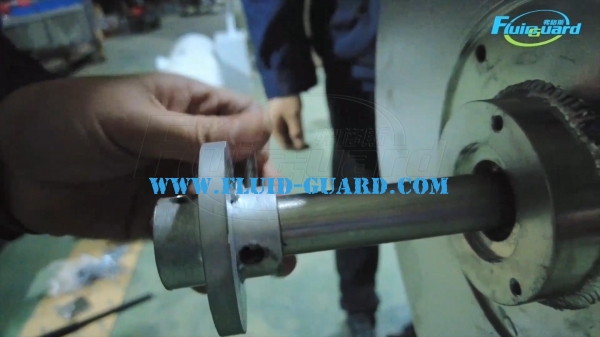

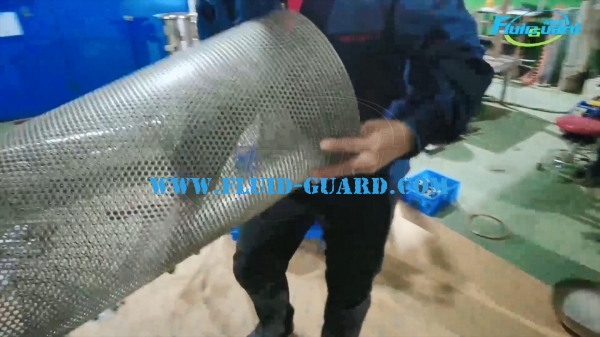

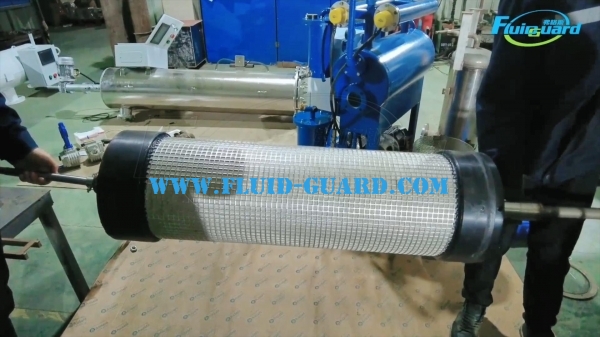

Product Details Photo:
