Product Name:Horizontal Self Clean Filter
Housing Material SS304/SS316L/Carbon Steel/Duplex 2205
Application:Drinking water, Waste water.
Get QuotationProduct Details
1. Fully automatic back washing, continuous flow during back washing;
2. 2 stages filtration, high filtration precision, large amount of treated water;
3. Suitable for a lot of water qualities, such as tap water, surface water, circulatingcooling water, etc.;
4. Compact structure, simple installation and easy maintenance;
5. Multi-layer sintered mesh has good filtering effect, high strength and long life
1. Industry: Plastic&textile, Food&beverage, Chemical, steel industry, Power generation, Petrochemical, Mining, Electronics, Pharmaceutical, Pulp&paper, Automotive
2. Agricultural irrigation.
3. Sea water: Desalination
4. Municipal: Water supply, Drinking water, Waste water.
Product Data Sheets
Max Flow rate | 80M3/h | 150M3/h | 300M3/h | 400M3/h |
Screen area | 0.15M2 | 0.33M2 | 0.54M2 | 0.68M2 |
Filter ratings | 25~800µm(as per client request) | |||
Min working pressure | 2 bar | |||
Max working pressure | 10bar(can be reached to 16 bar as per client request) | |||
Max working temperature | 0~60°C | |||

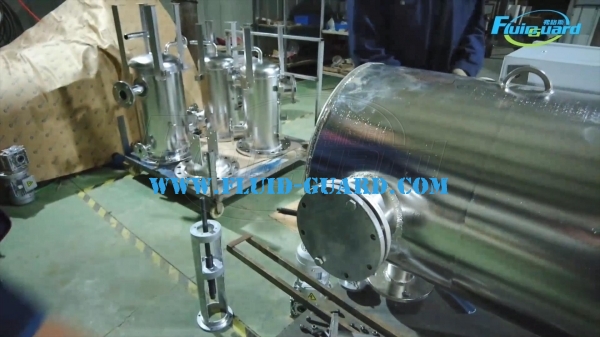

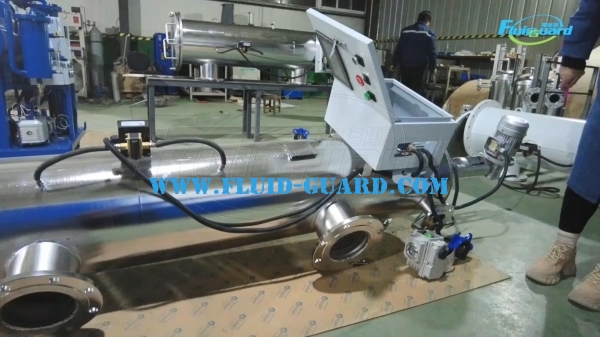

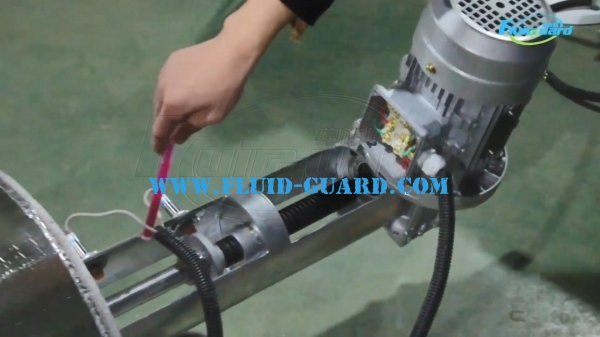

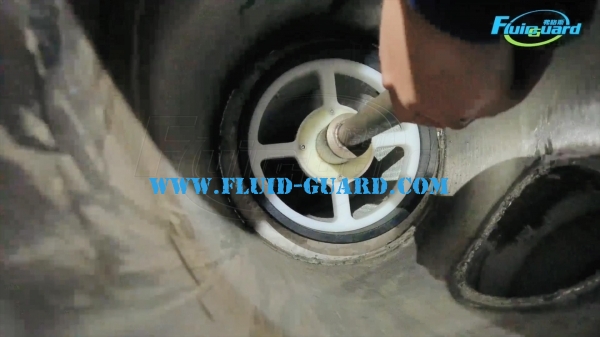

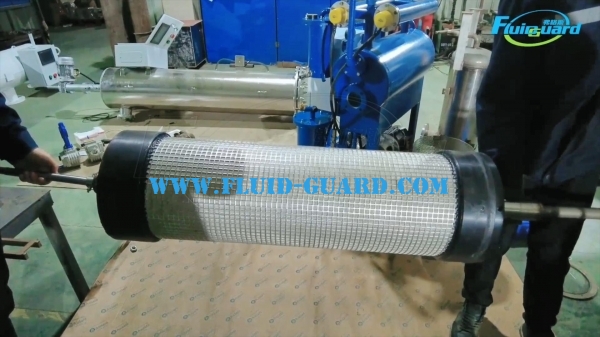

Product Details Photo:
