Aluminum Alloy High Pressure Polyurethane Filter Machine

Product Description

Self cleaning filter sets many doctor blades in filtering gaps, under the help of reduction motor or hand wheel, its doctor blades can clear away impurities easily among every filtering gap in time. It can overcome the defect of disassembling and washing filter screen, discharges dreg rapidly,  improves work efficiency  greatly,  and more friendly to environment.

It's a patented product here, widely used to polyurethane, petroleum,  edible oil, paint, glue, adhesive etc field, especially high concentration liquid raw material. Its filtering accuracy is up to 0.1~0.8mm, has strong ability of pressure-resistant and durability, and can realize the continuous filtering in automation industry.

Product Features

1. Self cleaning and slag off repidly;

2. No need to unpick and wash;

3. Disintegrate granular material hidden in liquid;

4. High pressure and high stability;

5. Accommodate high concentration raw material.

Working Principle

Self-cleaning filter is also named the doctor blade self-cleaning filter, the medium goes into barrel directly from inlet, is filtered through filter element gap from outside to inside, the medium flows to upper port from bottom to top. Dreg which size is more than filter disc gap is intercepted, when the filter disc component runs some time, the filter gap may be jammed by dreg, the driving unit would drive filter element component rotate (each doctor blade just inserts into the gap of filter element component) to clear away dreg from the filter disc gap and keep the filter element gap no block. When the bottom barrel is stored many dregs, only open the eject valve, dregs can be drained out, the processing pressure would return normal soon.

Both filtering disc and doctor blade are made of stainless steel or high quality manganese steel. And the doctor blade has been treated by by special surface strengthening processes. The performance of pressure-resistance and durability is really no substitute by any other filters. The granular material hidden in the liquid is disintegrated by rotating doctor blades.

The driving unit of filter has two types, manual and motor ones, the manual operation type is convenient and economic; the motor operation type can be matched with automation production line.

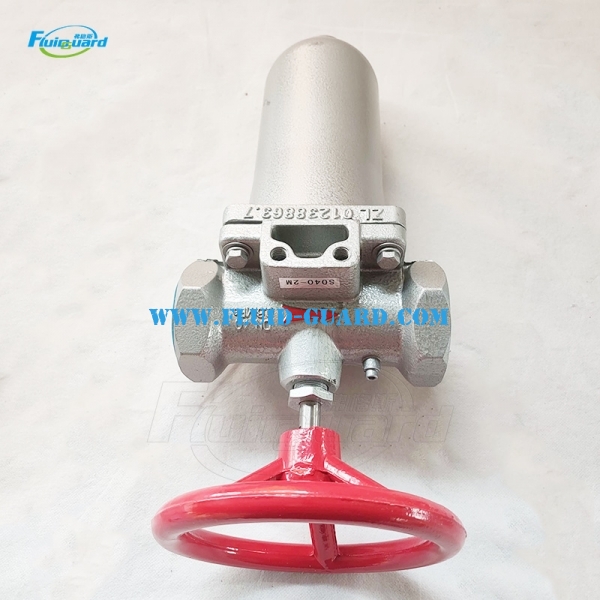

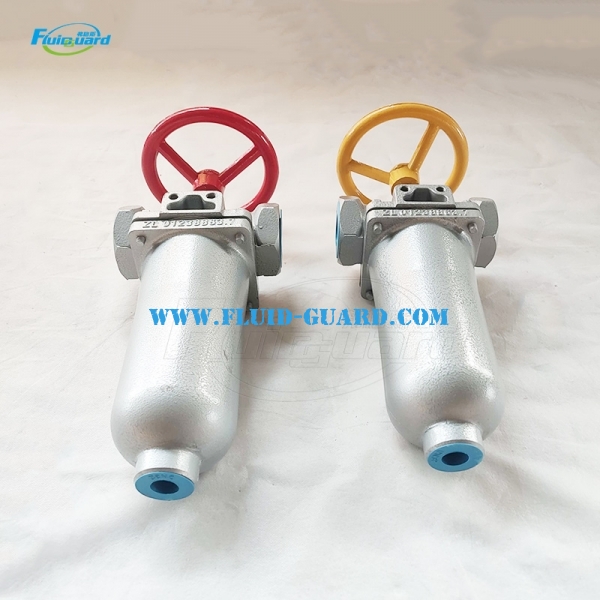

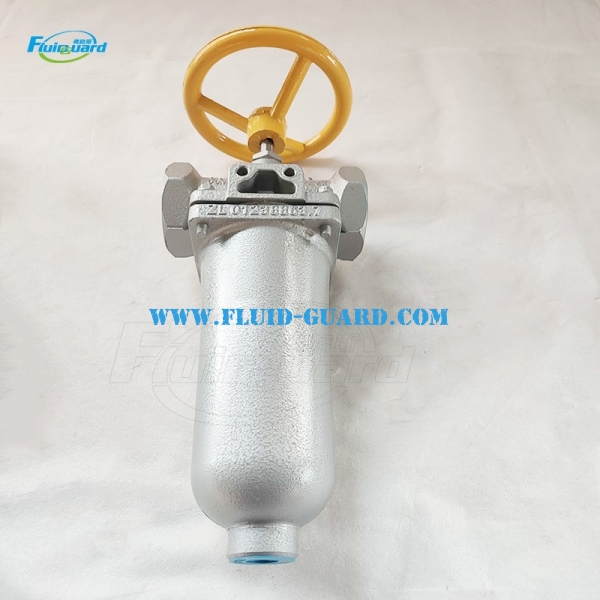

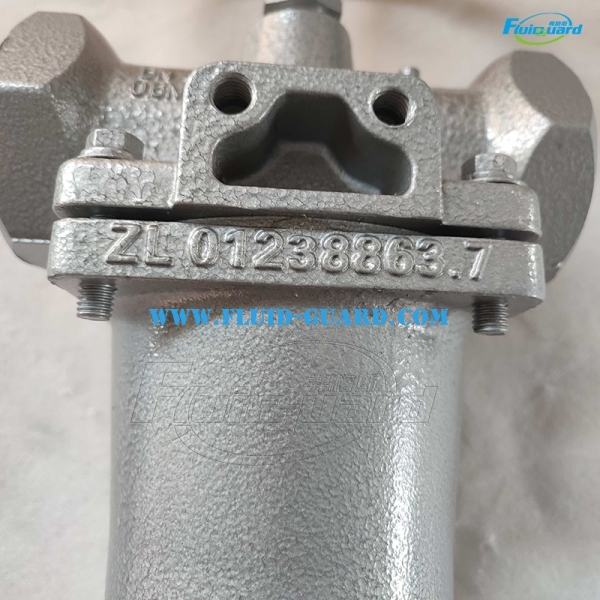

Products Photos:
