Product Details
Working Feature:

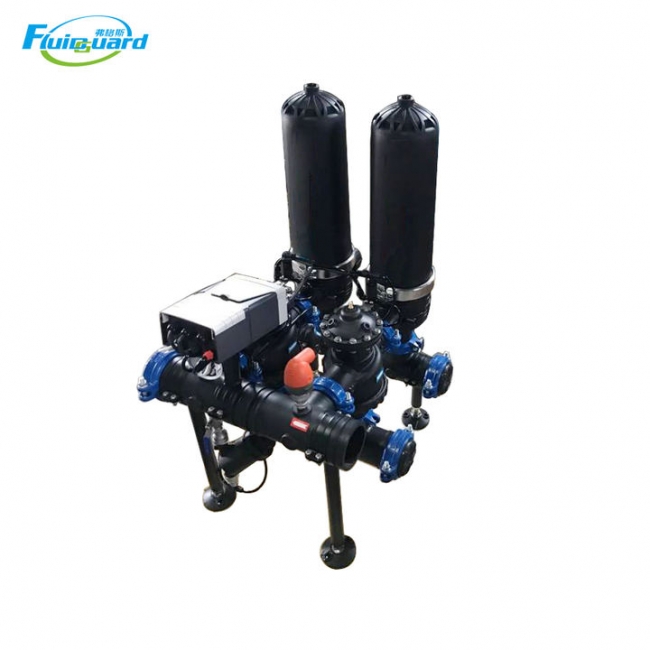

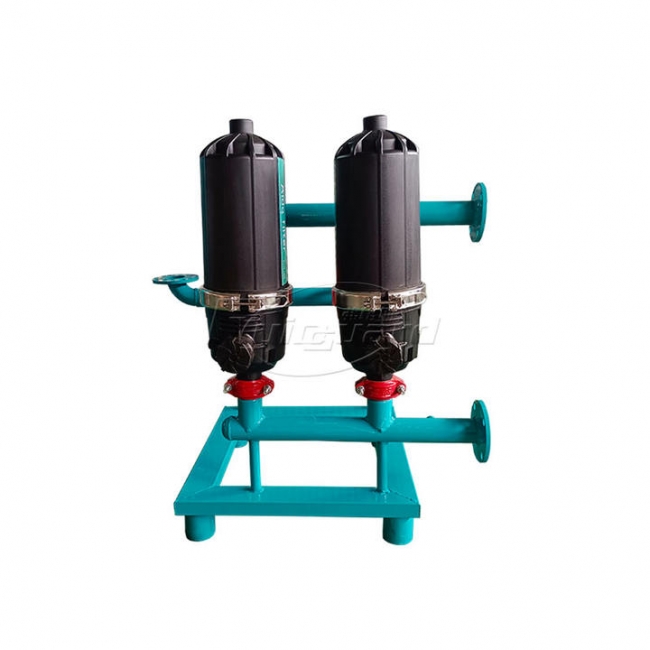

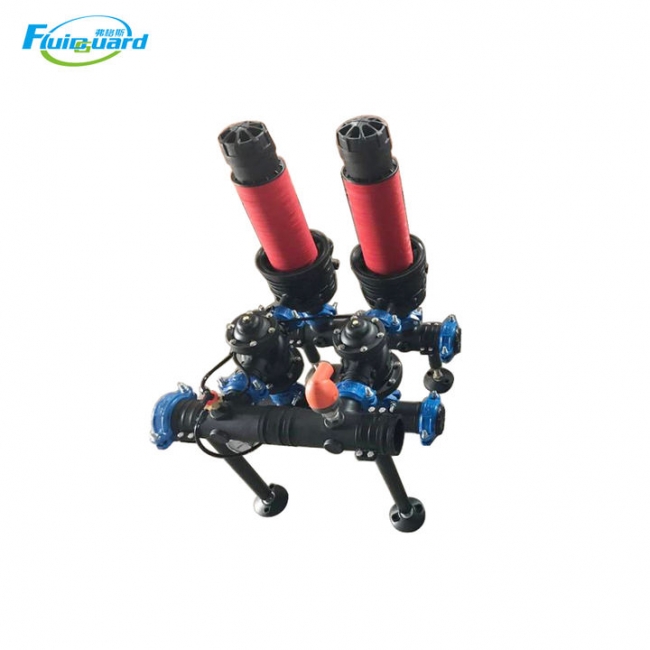

ADLF series fully automatic laminated filter is a kind of backwash filter equipment commonly used in modern water filtration systems. Because of its effectiveness, it is favored by more and more process water companies. The laminated filter system has the characteristics of backwashing, automatic continuous operation, low self-consumption water, small footprint, and reliable operation. The backwashing process of the filter system alternates alternately, and the automatic switching between working and backwashing states can ensure continuous water output and low pressure loss in the system. Therefore, the technical advantages of the disc filter system are obvious.
Technical Parameter:
Model | pipe size | H(mm) | H1(mm) | H2(mm) | D(mm) | L(mm) |
ADLF-2-2-A | 89 | 884.5 | 150 | 413 | 776.5 | 890 |
ADLF-2-3-A | 108 | 904 | 160 | 432.5 | 796 | 1165 |
ADLF-2-4-A | 108 | 904 | 160 | 432.5 | 796 | 1440 |
ADLF-2-5-A | 159 | 944.5 | 175 | 473 | 854 | 1715 |
ADLF-3-2-A | 108 | 1049 | 175 | 461 | 875 | 890 |
ADLF-3-3-A | 159 | 1074.5 | 175 | 486.5 | 933 | 1165 |
ADLF-3-4-A | 159 | 1092 | 192.5 | 504 | 933 | 1440 |
ADLF-3-5-A | 159 | 1092 | 192.5 | 504 | 933 | 1715 |
ADLF-4-3-A | 159 | 1416.5 | 282.5 | 594 | 1200 | 1195 |
ADLF-4-4-A | 219 | 1531.5 | 310 | 651.5 | 1200 | 1470 |
ADLF-4-5-A | 219 | 1531.5 | 310 | 651.5 | 1200 | 1745 |
ADLF-4-6-A | 273 | 1630.5 | 332.5 | 701 | 1200 | 2020 |
ADLF-4-7-A | 273 | 1630.5 | 332.5 | 701 | 1200 | 2295 |
