Beautiful price Multi bag filter housing for Liquid filtration

Description：

Bag filter can be divided into: single bag filter, multi-bag filter and sandwich filter.

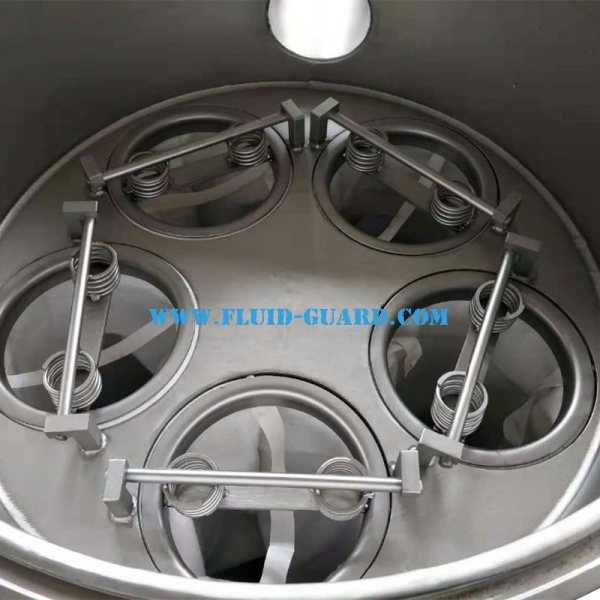

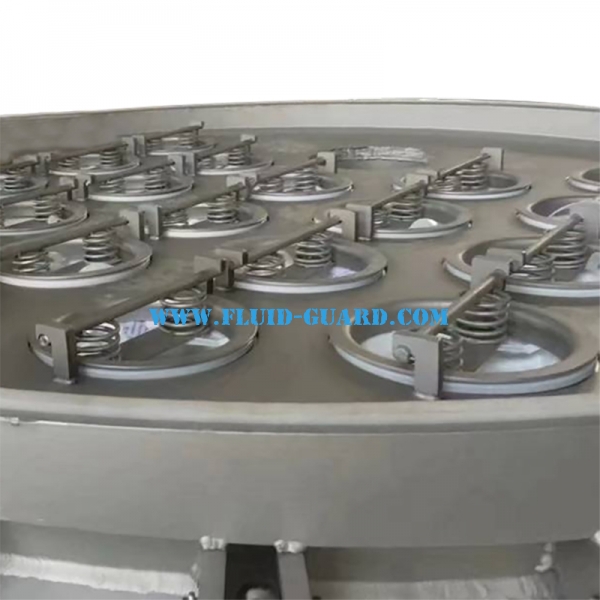

Multi-bag filter is suitable for large flow filtration. From 2 bags to 24 bags, the inlet and outlet flange diameter is φ40-450MM, and the maximum flow rate of a single machine is 90-1000m3/h.

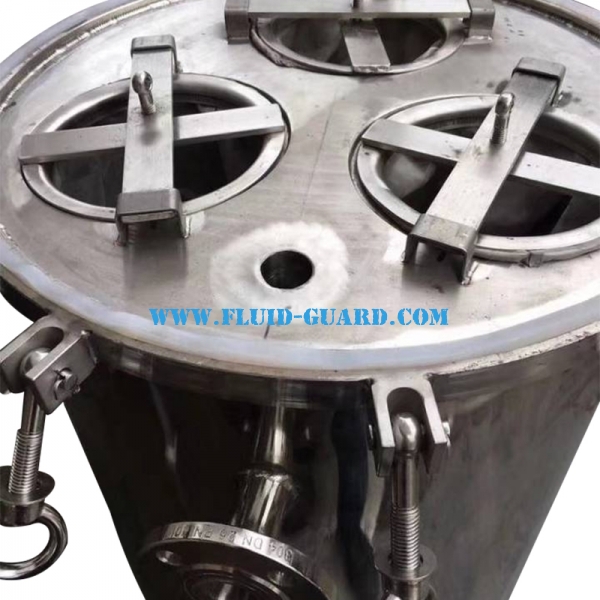

Can provide quick opening design, the filter bag replacement is very convenient.

It is also suitable for occasions where you want to replace the filter bag after a long time.

Profile type	Multi Bag Filter Housing
Material	SS304 or SS316L
Capacity	0-300T/H (Customized)
Working Pressure	0-5bar
Design pressure	10bar
Connection type	Flange/Thread
Bag cartridges material	PP	PE	nylon	PTFE
O-ring	SILICON	EPDM	PTFE
Bag Cartridges Micron	0.5micron-1000micron
