Product Details
Description

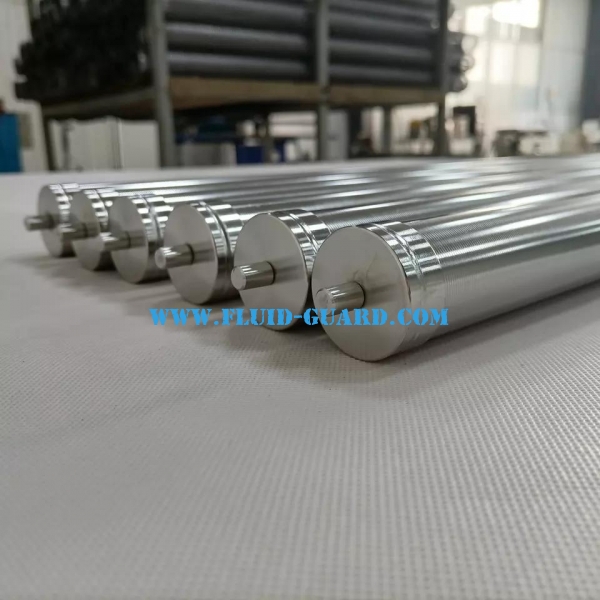

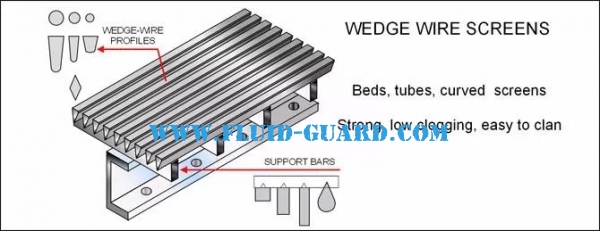

Wedge Wire Screen is welded by profile V-wire and support wires, which is also called Johnson screen. It has large filter area because of big opening, and wire structure is easy for automatic back washing and avoiding pipe blocking. The pressure is reduced when water flows in for greater filter area, so to avoid the grains of sand flow in the wedge wire tube in high pressure conditions, so to extend the pipe's life.
Product name | Wedge Wire Stainless Steel Filter |
Material | SS 304, 316, Duplex, etc |
Microns rating | 25-4000 micron |
Wedge Wire | 0.5*1.5; 0.75*1.5; 1*2 etc |
Support Rod | 1.5*2.5/2*3; 1.8*2.5/2*3 etc |
Lead time | 7-10 days |
Sizes | As per requirements |
