Product: High Precision oil purifier
Type: High precision
Feature: High Efficiency
Get QuotationProduct Details
Description

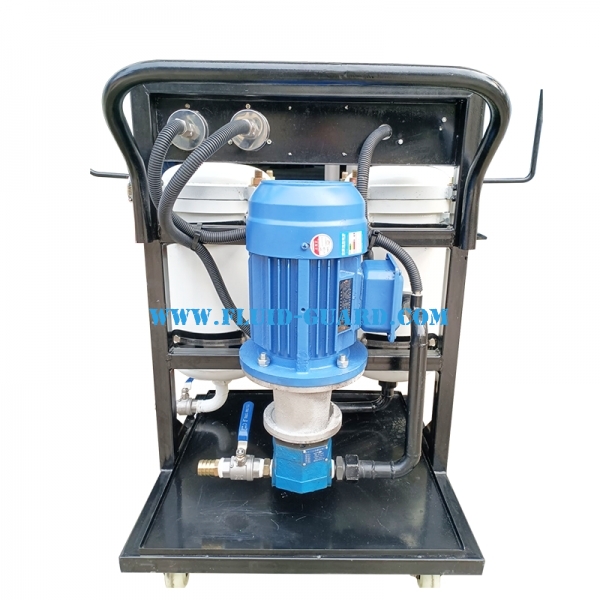

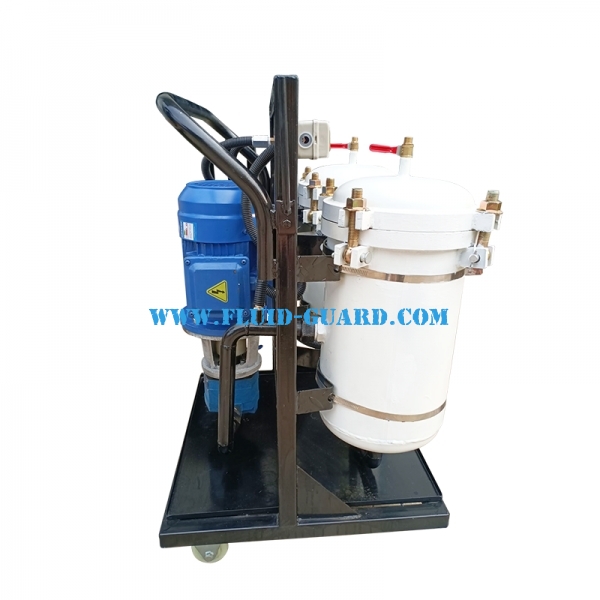

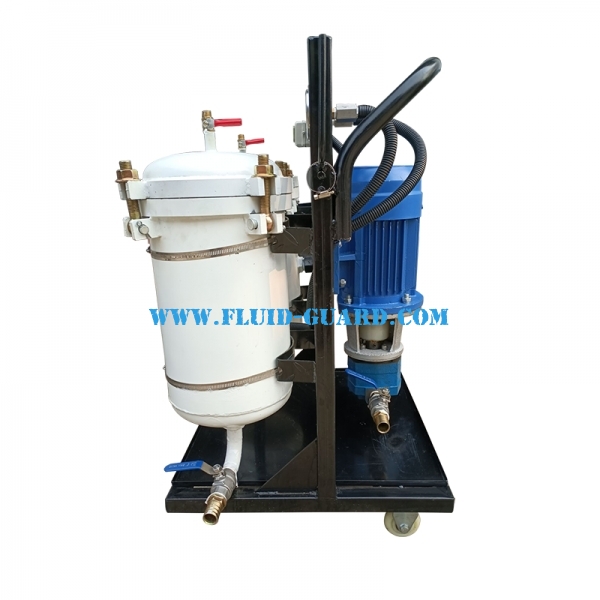

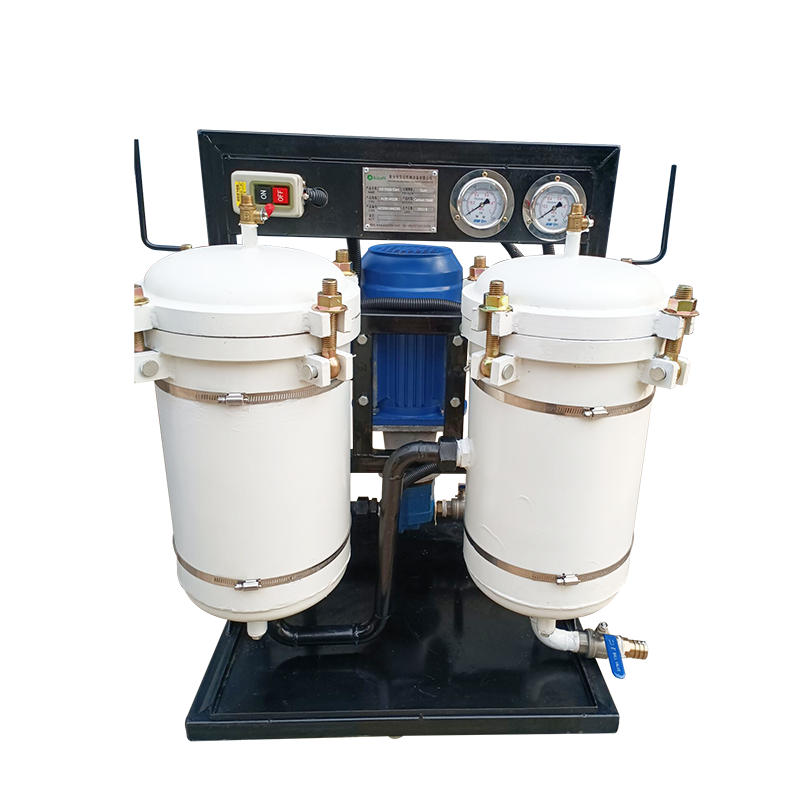

This filter cart is equipped with 2 filter housings and contains 3 filter stage: Coarse filter, 1st stage fine filter, 2nd stage fine filter, so it’s much more efficient compared to normal filter cart, which is equipped with only 1 filter housing and therefore contains only 2 filter stage.
The oil can be fast cleaned with this filter cart to a good precision level, say, 3 microns, so this filter cart is also called high precision filter cart.
It uses thermal relay protection to prevent motor damage which might be caused by motor overload.So it’s safe for you to use.
Model | AOP-B32 | AOP-B50 | AOP-B63 | AOP-B100 | AOP-B150 | |
Flow rate(L/M) | 32 | 50 | 63 | 100 | 150 | |
Pressure(Mpa) | 0.6 | |||||
Pressure drop(Mpa) | ≤0.02 | |||||
Coarse filter precision(um) | 100 | |||||
1st Fine filter precision(um) | 10、20、40 | |||||
2nd Fine filter precision (um) | 3、5、10 | |||||
DP(Mpa) | 0.2 | |||||
Temperature(°C) | 5-80 | |||||
Viscosity(cSt) | 10-160 | |||||
Voltage | AC380V 3 phase 50HZ | |||||
Motor Power(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | |
Weight(kgs) | 78 | 96 | 102 | 120 | 160 | |
Dimension(mm) | 720*680*1020 | 720*750*1220 | ||||
