Product Details
Description

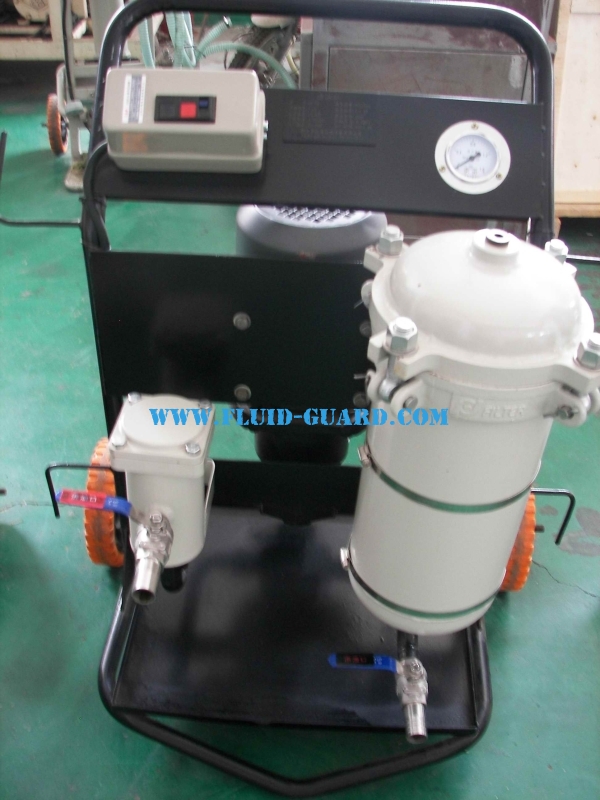

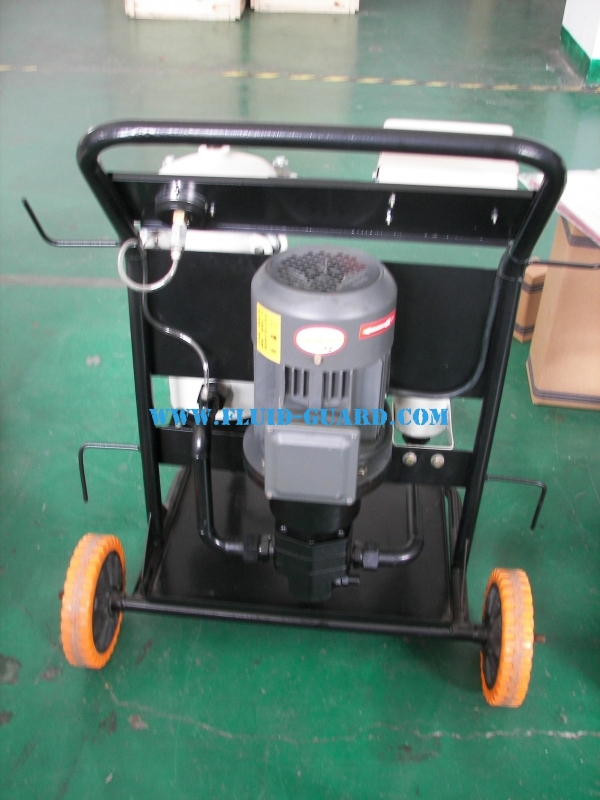

This oil purifier includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming ability and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
It uses thermal relay protection to prevent motor damage which might be caused by motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.
Different precision for the fine filter can be chosen according to different needs of users to achieve the required results.
The oil filter housing adopts a quick-opening structure. No special tools are need to quickly open the upper cover and replace the filter elements.
Model | AOP-A32 | AOP-A40 | AOP-A50 | AOP-A63 | AOP-A100 | AOP-A150 |
Flow rate(L/M) | 32 | 40 | 50 | 63 | 100 | 150 |
Pressure(Mpa) | 0.6 | |||||
Pressure drop(Mpa) | ≤0.01 | |||||
Coarse filter precision(um) | 100 | |||||
Fine filter precision(um) | 3、5、10、20、40 | |||||
DP | 0.2 | |||||
Temperature | 5-80°C | |||||
Viscosity(cSt) | 10-160 | |||||
Voltage | AC380V 3 phase 50HZ | |||||
Motor Power(kw) | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 |
Weight(kgs) | 64 | 75 | 80 | 85 | 100 | 135 |
Dimension(mm) | 720*680*1020 | 720*750*1220 | ||||
