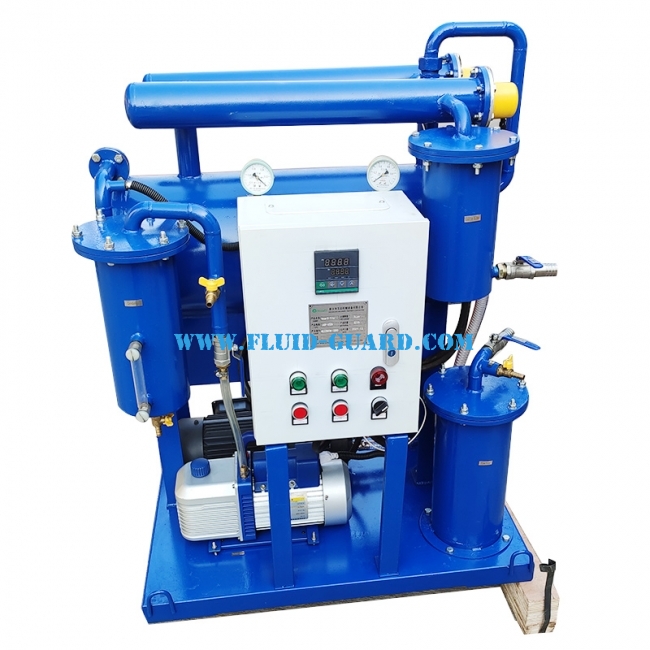

High efficiency 100 lpm vacuum dehydration oil purifier machine used for insulating oil dehydration

Machine structure:

The integrated bridge structure of the whole machine reduces the volume. The use of integral detachable oil tank ensures oil-free operation on the ground and reduces environmental pollution.

There are a variety of models to choose from, such as mobile, fixed, fully enclosed, and vehicle-mounted.

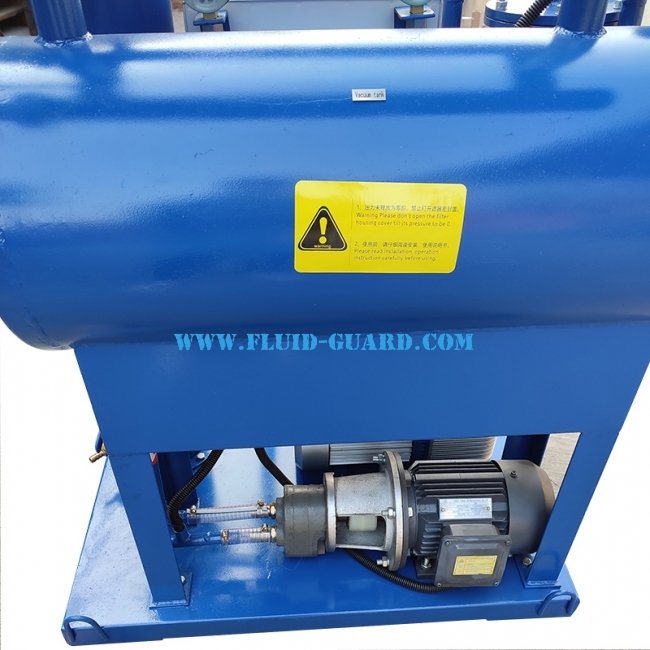

Vacuum system:

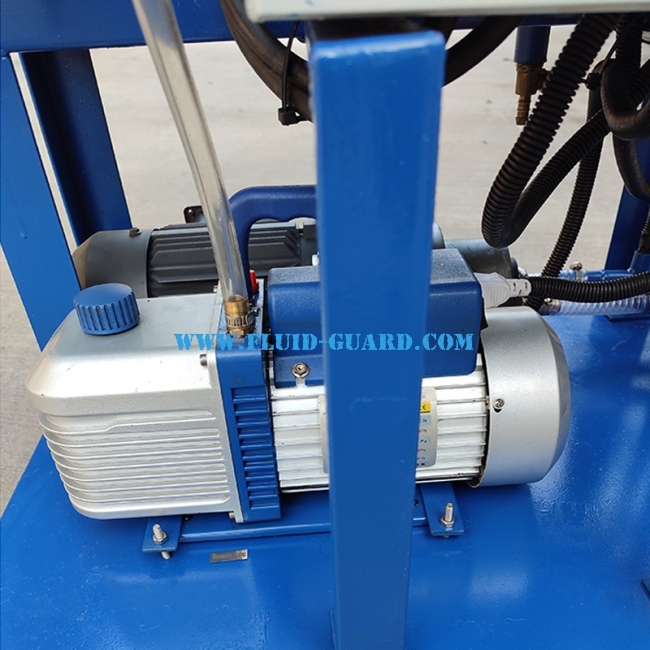

It consists of a vacuum tank, a vacuum pump, a condensation tank, a liquid accumulation tank, and an air supplement system. The optimized structure design greatly increases the surface area of the oil in the vacuum system and maximizes the stroke of the oil in the vacuum system. Make the moisture and gas in the oil overflow sufficiently. This machine adopts an advanced anti-foaming system, so that the oil purifier will never show the oil injection phenomenon commonly seen in similar products when it is working.

Filtering system:

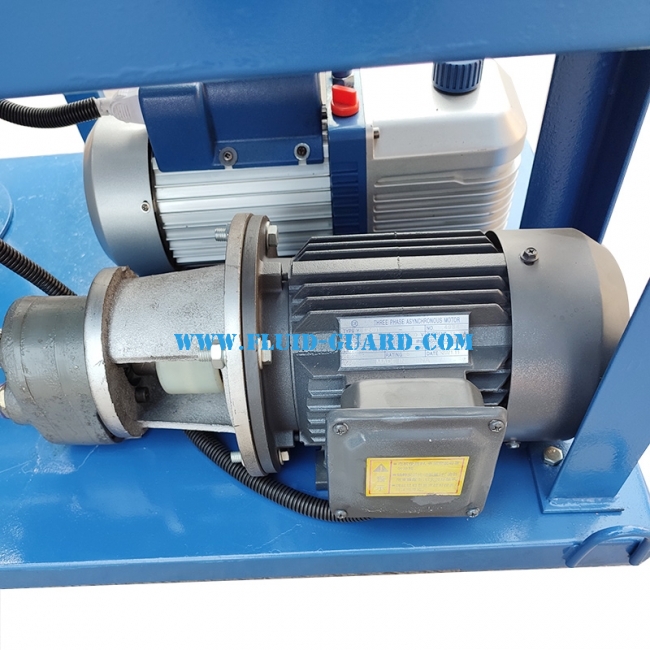

Three-stage filtration is adopted, and the coarse filter at the suction port protects the oil pump and extends the service life of the main filter. There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness. The filter material adopts special graded pore size glass fiber material, which can filter particles of different sizes in layers, which greatly improves the service life of the filter element. With a complete filter element structure, it can effectively reduce the surface flow rate of the filter material and obtain stable filtration accuracy.

Heating system:

It adopts step-by-step heating, and the surface heat load is less than 1.0W/cm2, which will not cause oil deterioration due to overheating. The oil temperature can be arbitrarily adjusted from 0 to 100°C, automatically controlled, and equipped with a protection device. When the oil intake is too small, it will automatically stop working to avoid damage to the heater caused by dry burning.

Automatic Control System:

The vacuum oil purifier adopts a series of automatic control instruments such as frequency converter, liquid level transmitter, temperature sensor, vacuum sensor, etc. to collect various information about the operation of the equipment, and hand it over to the central processor for processing and automatically control the entire machine. The operation of the equipment and monitor the operation status of the equipment. This machine is equipped with various protection devices (overload protection, overvoltage protection, phase sequence protection, abnormal operation shutdown protection) to ensure the safe operation of the equipment.

Technical Parameter:
