Dehydrator oil  Vacuum  Dehydration System Oil Purifier

Dehydrator oil Vacuum Dehydration System Oil Purifier

Features:

Application:Waste Oil Refinery Equipment

Function:Remove Water

Raw material:Carbon Steel

Get Quotation

Product Details

Products Description

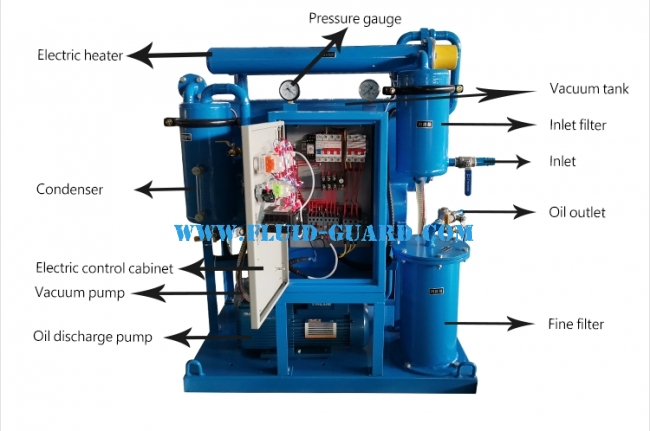

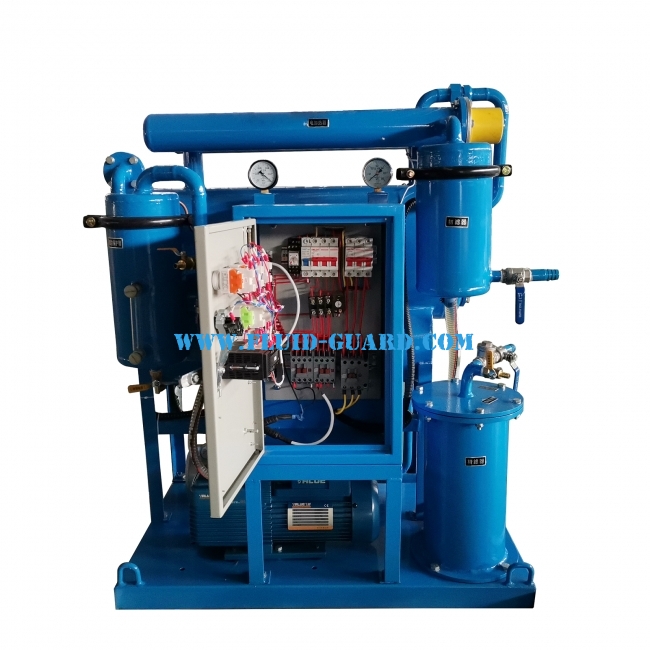

Vacuum oil purifier

This machine is mainly used to deal with unqualified transformer oil, turbine oil, hydraulic oil, mechanical oil, switch oil, etc.

It can remove the gas, moisture and mechanical impurities in the oil, so that the oil is qualified for application.

The machine has the characteristics of small size, high efficiency, and convenient movement, which is especially suitable for on-site operations, and can dry the moisture of the electric equipment, and it can also conveniently carry

out the vacuum oiling of the electric equipment.

This machine adopts oil-water separation technology that combines thin film vacuum evaporation and spray drying. It sets the vacuum pumping rate and heating power to match the flow rate. It is equipped with high-efficiency degassing elements, so that the machine has the best degassing and dehydration function.

This machine is specially designed with an oil level controller, an oil level observation window, and an oil return adjustment system to facilitate the observation of the oil level and ease the vacuum release as required.

Item

Unit

AOP-VS25 ~VS150

Flowrate

L/min

25 ~ 150

Working Pressure

Mpa

≤0.3

Rated Vaccum degree

Mpa

-0.06 to -0.099

Break down voltage

KV

≥ 55 ~65

Water Content

PPM

≤50

Air Content

%

≤0.1

Coarse filtration

um

100

Fine filtration

um

3 、5

Voltage

V

AC 380V three phase 、50Hz
adjustable

Heat power

KW

6-15 ~ 60

Power

KW

7-17 ~ 65

Weight

Kg

195 ~ 700

Packing Dimensions

mm

605*882*1225mm etc.
