Application : Hydraulic system bypass oil filtration
Model: AOP-A32
Flow Rate：32 L/min
Get QuotationProduct Details

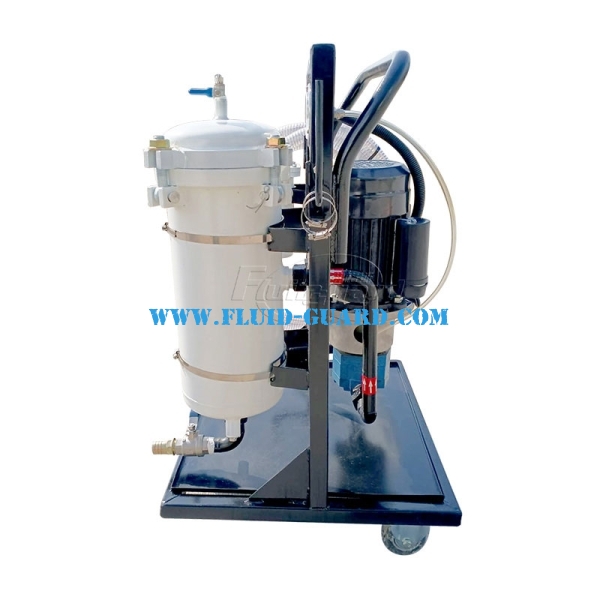

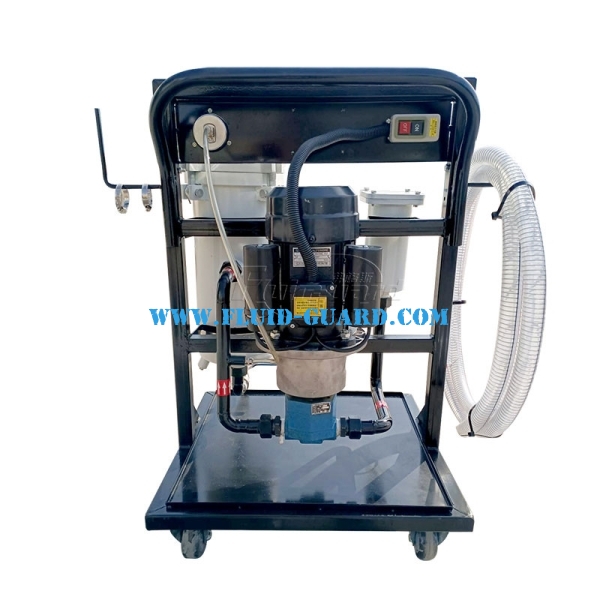

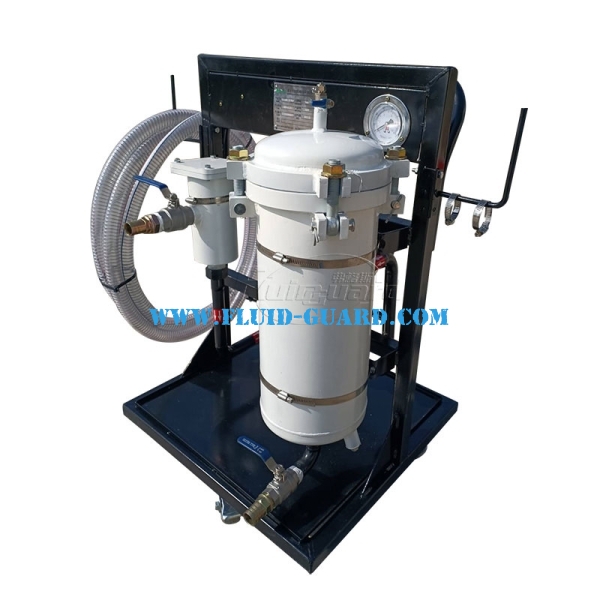

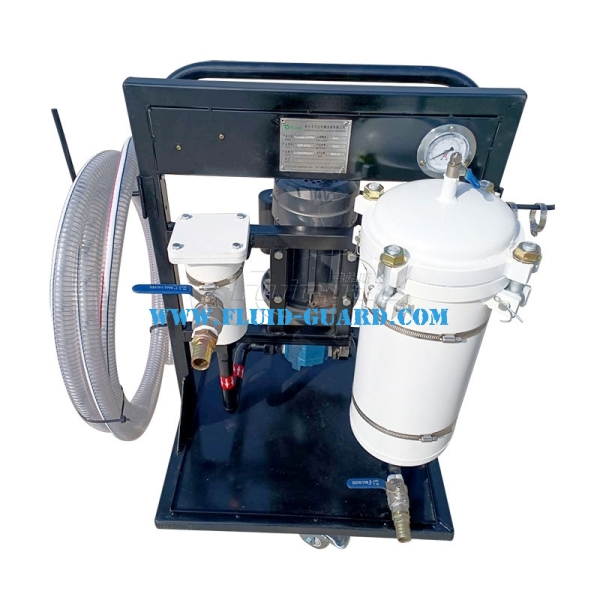

Portable oil filter machine are a portable way to filter multiple types of new and used oil, take oil samples, and transfer oil to and from storage containers and machines.
Portable oil filter machine are now considered a necessity when it comes to having an effective lubrication program thanks to their many benefits and uses.
1.Hydraulic lubrication system refueling and maintenance
2.The hydraulic,lubrication system bypasses filtration at work

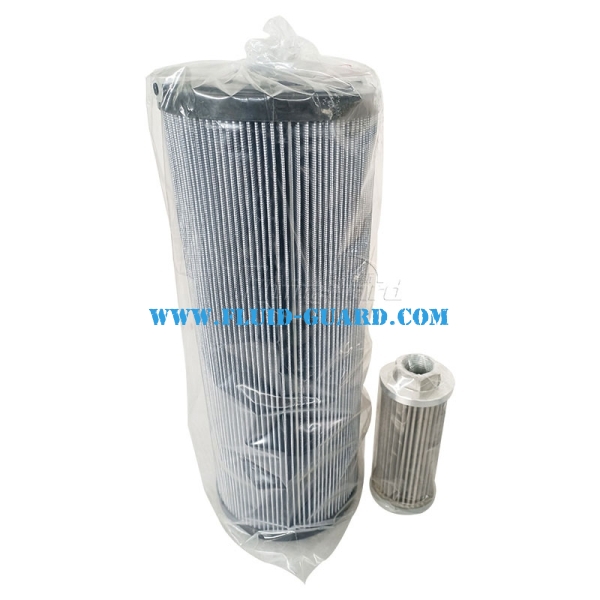

1.The oil filter includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion resistance and stable operation. It is especially suitable for liquids with weak lubrication performance. 2.Adopt thermal relay protection to prevent motor damage caused by motor overload 3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter. 4.The fine filter can select different accuracy according to different needs of users to achieve the required results.
| Part number | AOP-A30 | AOP-A50 | AOP-A80 | AOP-A100 | ||
| Rated pressure | 0.6MPa | |||||
| Rated flow | 30L/min | 50 L/min | 80 L/min | 100 L/min | ||
| Motor power | 0.85Kw | 1.1 Kw | 1.5 Kw | 3 Kw | ||
| Power supply | 380V,50Hz | |||||
| Accuracy | NASI638 5—7 level | |||||
| Operating temperature | 0~80 | |||||
| Applicable medium | Hydraulic oil、lubricating oil、Water、phosphate anti fuel | |||||
| Volume(mm) | 700×650×960 | 700×650×960 | 700×650×1100 | 700×650×1400 | ||
