High Precision Industrial Filtration Equipment Filter Fineness 3 Micron for for Hydraulic Oil Filtration System

High Precision Industrial Filtration Equipment Filter Fineness 3 Micron for for Hydraulic Oil Filtration System

Features:

Application : Hydraulic system bypass oil filtration

Model: AOP-B32

Flow Rate:32 L/min

Get Quotation

Product Details

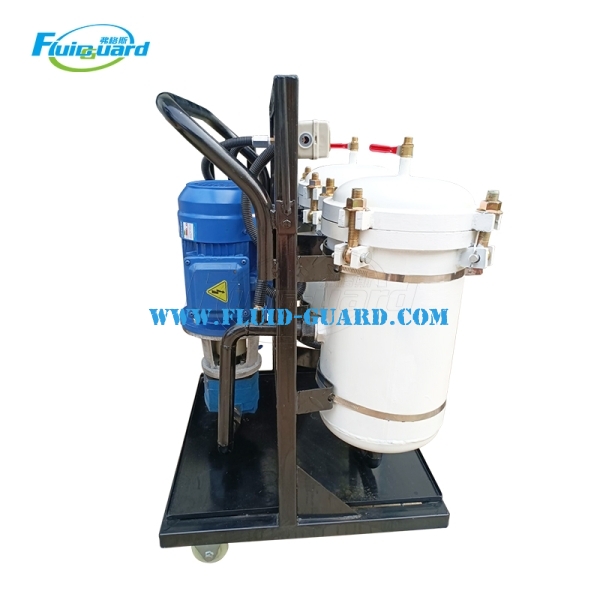

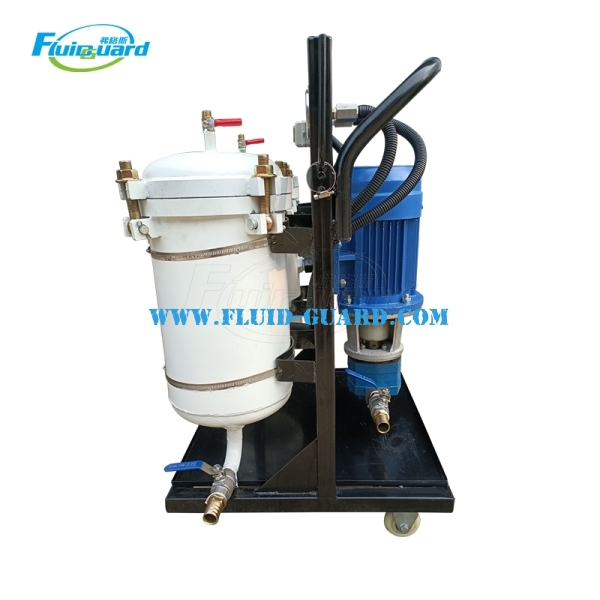

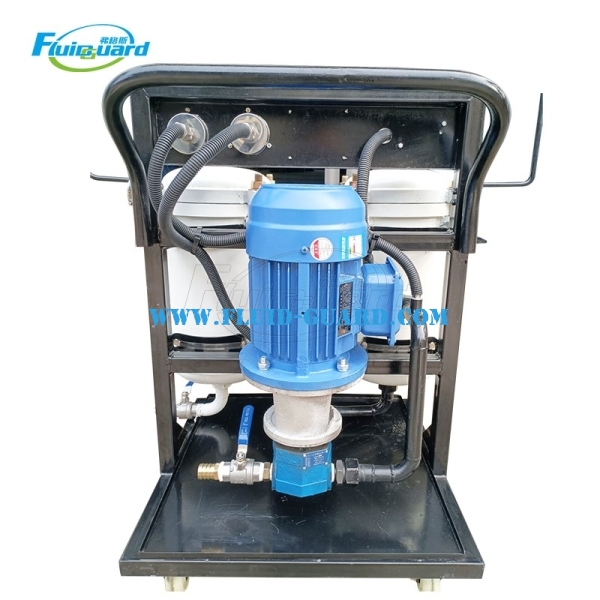

Portable oil filter machine

Portable oil filter machine are a portable way to filter multiple types of new and used oil, take oil samples, and transfer oil to and from storage containers and machines.

Portable oil filter machine are now considered a necessity when it comes to having an effective lubrication program thanks to their many benefits and uses.

Applications

1.Hydraulic lubrication system refueling and maintenance

2.The hydraulic,lubrication system bypasses filtration at work

Product Features

1.The oil filter includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion resistance and stable operation. It is especially suitable for liquids with weak lubrication performance. 2.Adopt thermal relay protection to prevent motor damage caused by motor overload 3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter. 4.The fine filter can select different accuracy according to different needs of users to achieve the required results.

Part number              AOP-B32           AOP-B50      AOP-B63         AOP-B100
Rated flow L/min                 32                 50           63             100
Rated pressure  Mpa                                                            0.6
Original pressure loss Mpa                                                          ≤0.02
Coarse filter accuracy μm                                                            100
Primary filtration accuracy μm                                                       10、20、40
Secondary filtration accuracy μm                                                      3、5、10、20
Motor power kw                 0.75                 1.1           1.5             2.2
Voltage  V                                           AC 380V three-phase
Weight  kg                  78                   96          102           120
Dimensions  mm            520×350×950720×680×1020720×680×1020    720×750×1020
