Products Name: Portable oil filter machine
Flow Rate: 6 L/min,10 L/min and 16 L/min
Application:hydraulic,lubrication system
Get QuotationProduct Details

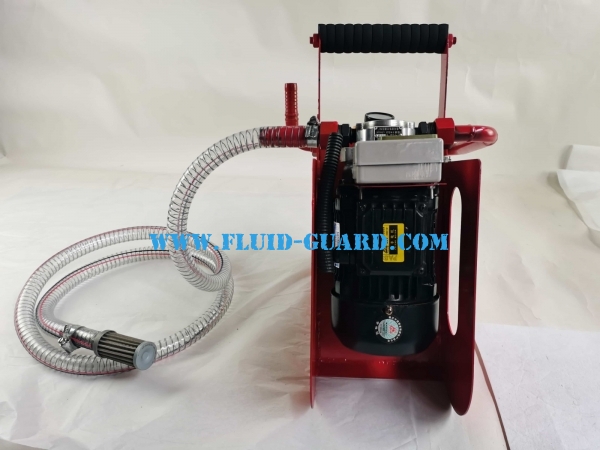

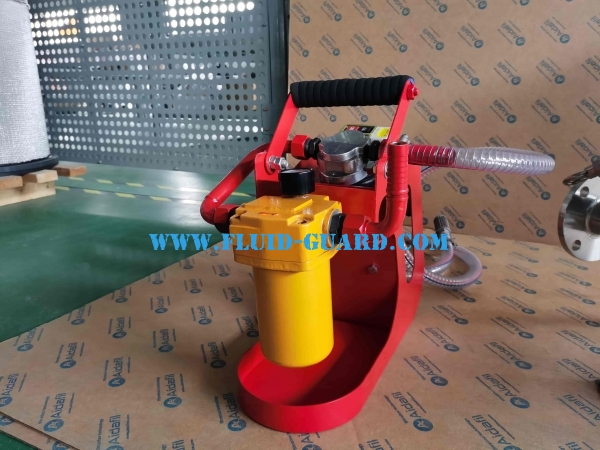

ortable oil filter machine
Portable oil filter machine are a portable way to filter multiple types of new and used oil, take oil samples, and transfer oil to and from storage containers and machines.
Portable oil filter machine are now considered a necessity when it comes to having an effective lubrication program thanks to their many benefits and uses.
Applications
1.Hydraulic lubrication system refueling and maintenance
2.The hydraulic,lubrication system bypasses filtration at work
Product Features
1. The oil filter includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion resistance and stable operation. It is especially suitable for liquids with weak lubrication performance.
2. Adopt thermal relay protection to prevent motor damage caused by motor overload 3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter.
4.The fine filter can select different accuracy according to different needs of users to achieve the required results.
Product Parameter
AOP-P series Portable oil purifier
Part Number | AOP-P6-*/** | AOP-P10-*/** | AOP-P16-*/** |
Rated flow | 6 L/min | 10 L/min | 16 L/min |
Rated pressure | 0.4 Mpa | ||
Original pressure loss | ≤0.02 Mpa | ||
Filtration accuracy before pump | 40 μm | ||
Filtration accuracy after pump | 3μm, 5μm, 10μm, 20μm, 40μm | ||
Motor power | 0.18 Kw | 0.25 Kw | 0.35 Kw |
Voltage | AC380V three-phase AC220V two-phase | ||
Weight() | 13 Kg | 16 Kg | 18 Kg |
External dimensions | 380×200×510 | 400×200×510 | 420×200×510 |
Zhengzhou Fluidguard Machinery Equipment Co., Ltd. TEL: 0086-0373-5128206
Zhengzhou Fluidguard is a collection of filter strainer, filter element, oil purifier and air compressor design and manufacturing, online sales and marketing as one of the modern manufacturers
