63 L/Min Portable Hydraulic Oil Filter Cart For Cleaning Hydraulic Oil

63 L/Min Portable Hydraulic Oil Filter Cart For Cleaning Hydraulic Oil

Features:

Products Name: Movable oil filter cart

Flow Rate:32 L/min,50 L/min and 100 L/min

Application:hydraulic,lubrication system

Get Quotation

Product Details

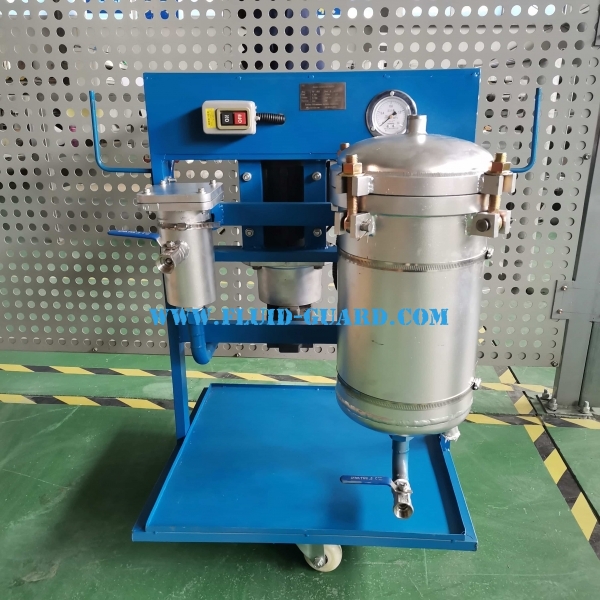

Movable oil filter cart



This filter cart includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming ability and stable operation.

The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the

hydraulic system.

It uses thermal relay protection to prevent motor damage which might be caused by motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.

Different precision for the fine filter can be chosen according to different needs of users to achieve the required results.

The oil filter housing adopts a quick-opening structure. No special tools are need to quickly open the upper cover and replace the filter elements.

The panel is equipped with a pressure gauge, which continuously indicate the operating status of the system and the degree of pollution of the filter elements during work.



Part number

AOP-M32A

AOP-M50A

AOP-M63A

AOP-M100A

Rated flow

32L/min

50 L/min

63 L/min

100 L/min

Rated pressure

0.6 MPa

Original pressure loss

≤0.01 Mpa

Coarse filter accuracy

100 μm

Fine filter accuracy

3μm, 5μm, 10μm, 20μm, 40μm

Motor power

0.75Kw

1.1 Kw

1.5 Kw

2.2 Kw

Power supply

380V, 50Hz

Operating temperature

5~80

Applicable medium

Hydraulic oil, Lubricating oil

Volume(mm)

430×350×950

720×680×1020

720×680×1020

720×750×1220
