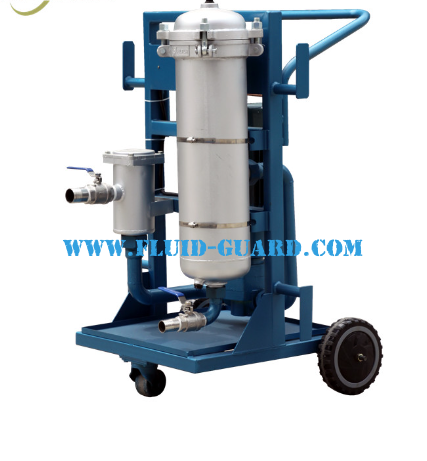

High precision AOP-A100 movable portable oil purifier use in bypass filtration of hydraulic lubrication system

High precision AOP-A100 movable portable oil purifier use in bypass filtration of hydraulic lubrication system

Features:

Motor power: 2.2kw

Rated flow: 100L/min

Type: movable portable oil purifier

Get Quotation

Product Details

Features


This oil purifier includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming ability, and stable operation.

The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

Use thermal relay protection to prevent motor damage caused by motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.

Different precision for the fine filter can be chosen according to the different needs of users to achieve the required results.

The oil filter housing adopts a quick-opening structure. No special are needed to quickly open the upper cover and replace the filter element.

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element during working.


Structure characteristics


End cup

Top design quick structure, easy to change filter element.

Filter element
Selected high-precision filter material, large filter area, keep up with the international advanced structural design.
Connect
All adopt hydraulic pipe joint, reliable connection and sealing, zero leakage.
Loadable frame:durable
Wheel
High quality polyurethane wheel, famous brand bearing, stable operation, no noise.
Electric control
It adopts magnetic starter and thermal relay protection, which can effectively protect the motor and is durable.
Suction filter
High strength woven net is used to protect the oil pump from damage.
Pressure indication
Pressure gauge is set to indicate system pressure and prompt to replace filter element in time.

Oil pan
Helps keep workplace safe.
Gear pump
Internal gear pump, quiet operation, reliable performance, long service life.


Technical parameter:


Model

Rated flow(L/min)

Rated pressure(Mpa)

Coarse filter precision(um)

Fine filter precision(um)

Motor powerkw

Weight(kg)

Dimensions(mm)

AOP-A100

100

0.6

100

35102040

2.2

100

720*750*1020


AOP-A3
