Hot sale Pall oil purifier produced by AIDA

PALL oil purifier

Introduction of PALL oil purifier

Divided into: HNP,HVP, HCP,HEP,PFC,PFS,PFU and other series. The Pall high-efficiency oil purifier adopts a new type of environmen ffriendly filter element. It can perform efficient filtration of solid particles on a variety of liquid media in a variety of occasions.

Features of Pall-Ultipor lll high efficiency filter material:

Quickly filter out solid pollutants, high efficiency

The filter material is made of patented fiber and resin through a unique process, with a fixed pore structure,and the filter material does not fall off. The polluted particles that are blocked will not cause"blowout" due to the pressure difference and flow pulsation.

Adopt a gradual aperture structure that gradually shrinks from the front to the back along the flow direction, so can intercepts polluted particles of different sizes in layers to hold big volume pollutants , thereby its service life is greatly improved.

Strengthen the support with spiral winding belt to ensure the filter material is stable.LZ filter material adopts water-absorbent resin material.

Features of PFC series new oil purifiers:

Lock pressure difference alarm.Prevent false alarms during cold start.

The filter is equipped with a bypass valve.To prevent the system from being cut off.The motor lack phase and false phase protection.

The sound and light pressure difference alarm prompts to replace the filter element.The oil suction port coarse filter protects the oil pump.

The oil outlet diffuser prevents air from mixing into the oil tank.

Universal wheel makes the movement more flexible and convenient.Add oil pan and oil pipe fixing device.Reduce environmental pollution.The oil pump has a relief valve.

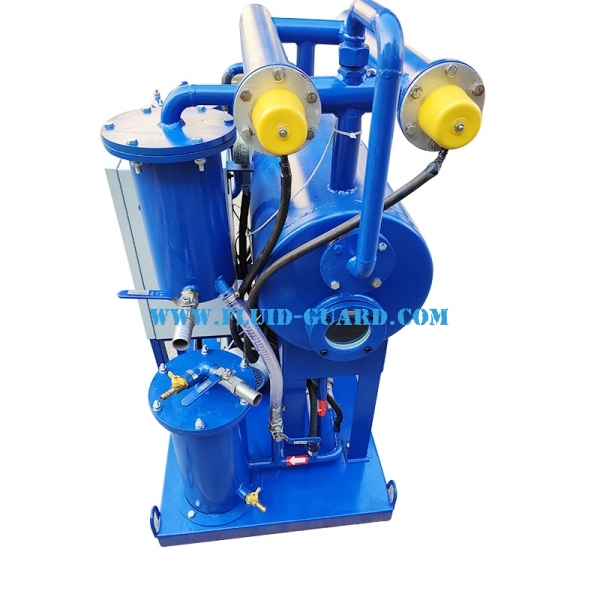

Pall oil purifier PFC8314-50.AIDA manufactures alternatives for Pall oil purifier.The PFC8314 series adopts German Kraj gear pumps and ABB motors, which deliver smooth fluid, no pulse, low noise, low vibration, and strong self-priming ability.The oil pump gear is an aid helical gear with strong anti-pollution ability.The oil pump itself has a safety protection valve to prevent overload of the pump and damage to the motor.Equipped with a differential pressure alarm device to remind users to replace the filter element. The rear of the pump is a fine filter,and the inlet is equipped with a coarse filter to protect the oil pump and prolong the service life of the main filter. The fine filter behind the pump adopts a quick opening method, and the upper cover can be opened and replaced quickly without special tools.The fine filter can be customized with different precision according to the different needs of users to achieve the required filtering effect.

Application to alternative series of Pall PFC8314 oil purifier.

1.Filtration when refueling the hydraulic lubrication system;

2.Bypass filtration when the hydraulic lubrication system is working;

3.Cyclic filtration before the hydraulic lubrication system is put into operation;

4.Intervene in the hydraulic lubrication system to comprehensively improve the cleanliness of the system.
