Most popular vacuum oil purifier AOP-1V-150

Applications

Purification of turbine oil and transformer oil

Water removal and impurity filtration of oil in hydraulic lubrication system

Overall improvement of cleanliness of hydraulic lubrication system

Regeneration and purification of various oils

Features

Vacuum System

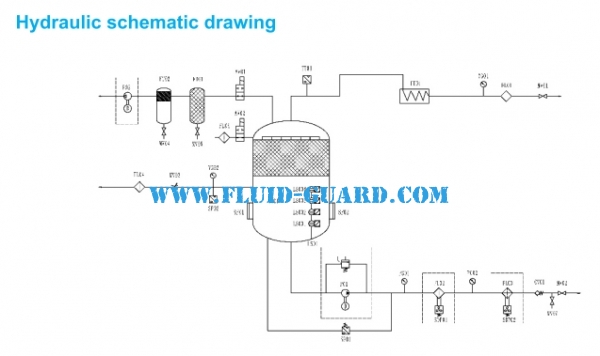

It is composed of vacuum tank,vacuum pump，condensing tank，liquid accumulation tank,and air supplement system. The optimized structure design greatly increases the surface area of the oil in the vacuum system and maximizes the stroke of the oil in the vacuum system. Make the water and gas in the oil overflow sufficiently.This machine adopts an advanced anti-foaming system, so that the oil filter will never show the oil injection phenomenon that is common in similar products.

Filtration system

Three-stage filtration is adopted, and the coarse filter at the suction port protects the oil pump and prolongs the service life of the main filter. A two-stage fine filter is installed behind the pump to make the oil quickly reach a high degree of cleanliness.The filter material adopts special gradual aperture glass fiber material,which can filter particles of different sizes in layers，which greatly improves the service life of the filter element. With a complete filter element structure, it can effectively reduce the surface flow rate of the filter material and obtain stable filtration precision.

Heating system

It adopts step-by-step heating,the surface heat load is less than 1.0W/cm³ , and the oil will not deteriorate due to overheating. The oil temperature can be arbitrarily adjusted from 0 to 100° C,automatically controlled, and equipped with a protection device. When the oil intake is too small, it will automatically stop working to avoid damage to the heater caused by dry burning.

Automatic control system

This machine adopts a series of automatic control instruments such as frequency converter，liquid transmitter，liquid level transmitter，temperature sensor，vacuum sensor，etc.，to collect various information of equipment operation, and hand it to the central processor to process and automatic ally control the operation of the entire equipment and monitor the operating status of the equipment.This machine is equipped with various protection devices (overload protection，edge voltage protection,phase sequence protection, abnormal operation shutdown protection) to ensure the safe operation of the equipment.
