Good quality movable double pipe oil filter machine

This oil fiter includes a special gear pump driven by a motor. It has the characteristics of low field sound,

strong self-priming ability, and stable operation.

The high-pressure pipeline is equipped with overflow protection device a. It can effectively protect the

safety of the hydraulic system.

Use thermal relay protection to prevent the motor from being damaged due to motor overload.

The coarse fiter at the suction port protects the oil pump and extends the service life of the main filter.

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of

cleanliness.

Different precision for the fine flter can be chosen according to the different needs of users to achieve the

required results.

The primary fiter can flter out larger particles and impurities, and the secondary filter can filter out fine

particles or water.

The oil filter housing adopts a quick -opening structure. No special tools are needed to quickly open the

upper cover and replace the flter element.

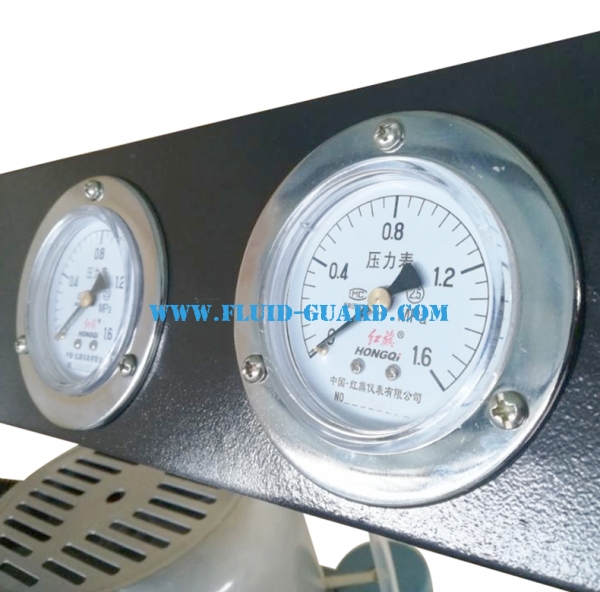

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the

system and the pollution degree of the fiter element during work.
