AIDA made customizing supported double-pipe oil filter machine

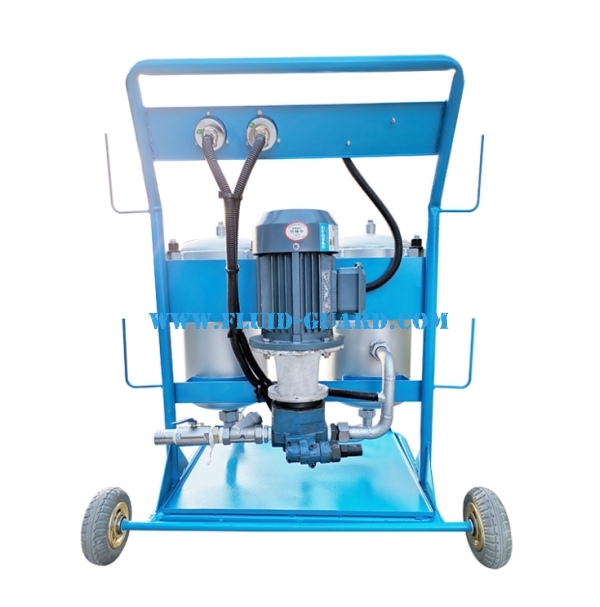

AIDA made customizing supported double-pipe oil filter machine

Features:

Application: filter oil

Weight: 46-160 KG

Voltage: 380 V

Get Quotation

Product Details

Principles

The pollution degree of unpurified new oil often exceeds the requirements of actual hydraulic

system oil regulations. Even the new oil that has just been extracted from the oil tank is not

suitable for direct use. There are many reasons for the pollution of the new oil. Various

pollutants, including particles, moisture, may pass into the new oil during processing, mixing

and storage. Portable oil filter is an ideal method for pre -filtering, flling oil and purifying

system oil. The free water in the oil can be separated out through the dehydration filter

element installed in the outlet filter. The dehydration filter element is made of super absorbent

resin that has a high binding force with water. Free water once Contact with this material is

adsorbed.

This oil fiter includes a special gear pump driven by a motor. It has the characteristics of low field sound,

strong self-priming ability, and stable operation.

The high-pressure pipeline is equipped with overflow protection device a. It can effectively protect the

safety of the hydraulic system.

Use thermal relay protection to prevent the motor from being damaged due to motor overload.

The coarse fiter at the suction port protects the oil pump and extends the service life of the main filter.

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of

cleanliness.

Different precision for the fine flter can be chosen according to the different needs of users to achieve the

required results.

The primary fiter can flter out larger particles and impurities, and the secondary filter can filter out fine

particles or water.

The oil filter housing adopts a quick -opening structure. No special tools are needed to quickly open the

upper cover and replace the flter element.

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the

system and the pollution degree of the fiter element during work.
