Product Details
Working Feature:

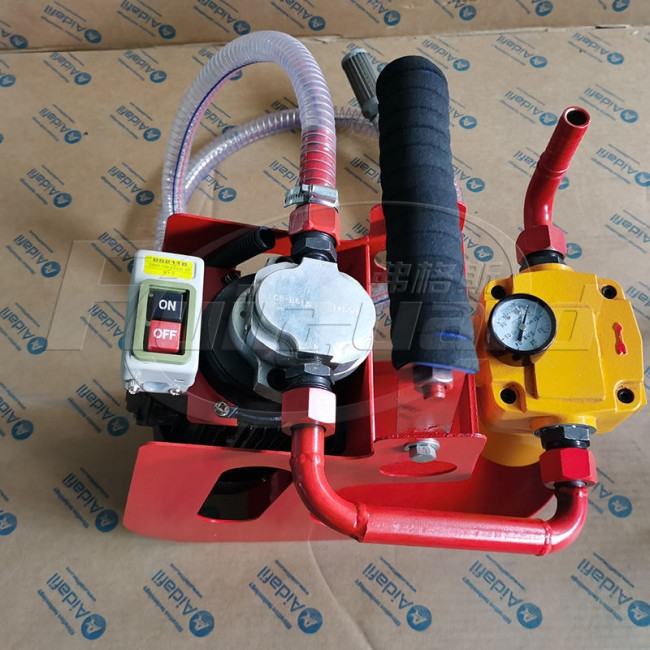

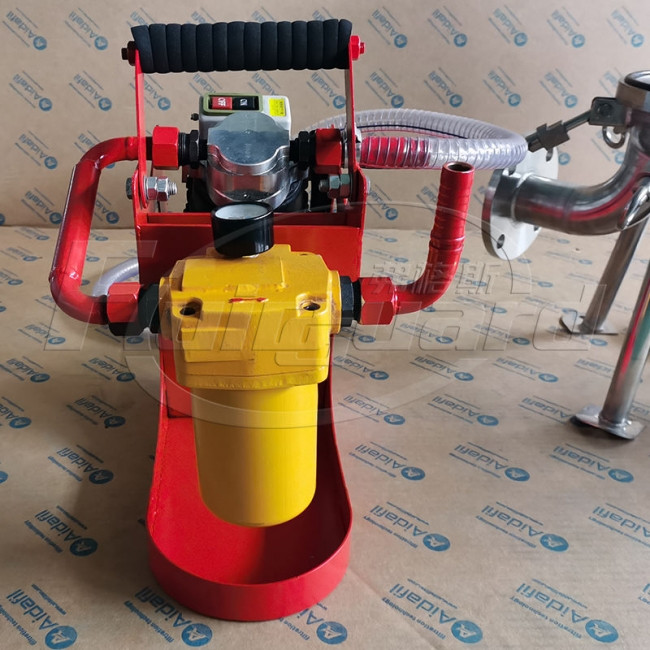

1.The oil filter includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion resistance and stable operation. It is especially suitable for liquids with weak lubrication performance. 2.Adopt thermal relay protection to prevent motor damage caused by motor overload 3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter. 4.The fine filter can select different accuracy according to different needs of users to achieve the required results.
Technical Parameter:
Item | Unit | FDP-P6 | FDP-P10 | FDP-P16 |
Flow Rate | L/min | 6 | 10 | 16 |
Working Pressure | Mpa | 0.4 | ||
Original Pressure Loss | Mpa | ≤0.02 | ||
Filtration Accuracy Before Pump | um | 40 | ||
Filtration Accuracy After Pump | μm | 3, 5, 10 20, 40 | ||
Motor Power | KW | 0.18 | 0.25 | 0.35 |
Voltage | V | AC380V three-phase AC220V two-phase | ||
Weight | Kg | 13 | 16 | 18 |
External Dimensions | mm | 380×200×510 | 400×200×510 | 420×200×510 |
