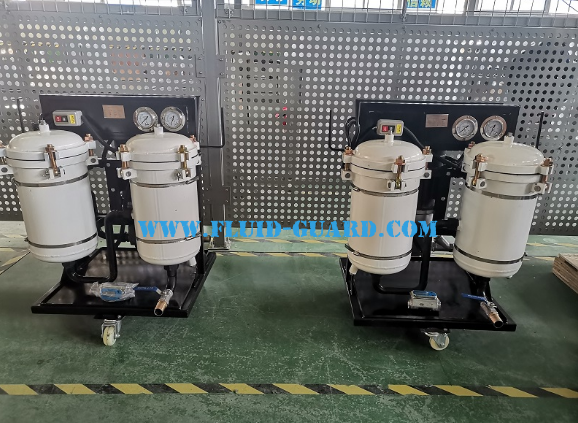

AOP-B25 movable oil purifier filter for new oil

This oil purifier includes a special gear pump driven by a motor. It has the characteristics of low noise, strong self-priming ability, and stable operation.

The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

Use thermal relay protection to prevent motor damage caused by motor overload.

The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.

Different precision for the fine filter can be chosen according to the different needs of users to achieve the required results.

The oil filter housing adopts a quick-opening structure. No special are needed to quickly open the upper cover and replace the filter element.

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element during working.
