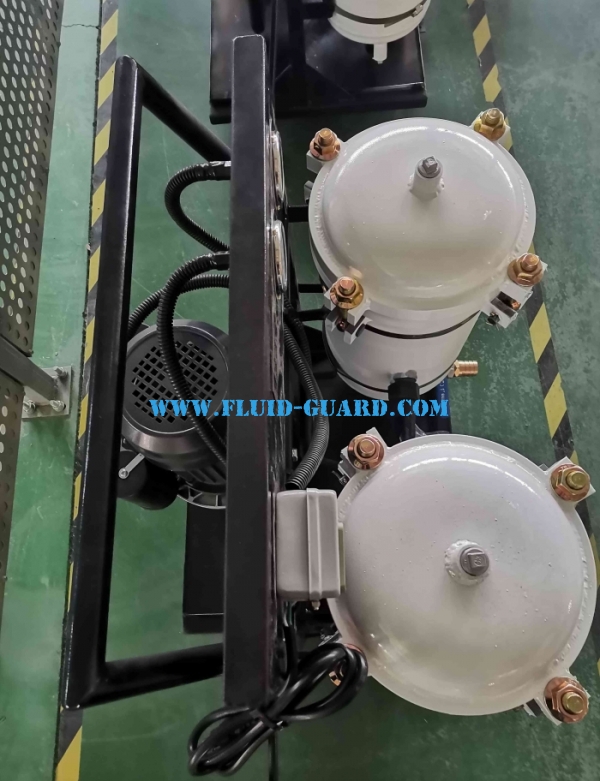

Unique technology AOP-B series movable oil purifier

The movable oil purifier adopts a unique technology to remove the impurities from the oil. By removing the impurities, it can protect the machine and extend its operating time.

Structure features
Box type structure
Neat and beautiful, effectively protect all components.
Double stage fine filter
Pre-filter and fine filter, 2 times filtration area, long service life,optional dehydrating filter element.
End cap
Top design, Quick-opening structure, convenient for maintenance.
Filter element
High precision filter material, Large filtration area,advanced structure design.
Connection
Adopting hydraulic pipe joints, reliable connection and sealing, zero leakage.
Frame
Sturdy and durable.
Carriage wheel
Premium polyurethane wheel, operate smoothly, no noise.
Electrical control
Using magnetic starter, built- -in thermal relay protection, effective protection of the motor, sturdy and durable.
Suction oil filter
Using high-strength mesh grid for protecting oil pump from damage.
Pressure indicator
Equipped with pressure gauge to indicate system pressure and prompt to replace the filter element in time.
Gear pump
Internal gear pump, quiet operation, reliable performance, long service life.
Anti explosion Anti-explosion type is optional, widely used in petroleum, chemical, aerospace and other fields. Built- -in tank
Built-in tank is optional. The oil in the tank can be directly injected into the system after it passes through the self-circulating filtration to reach the standard.
