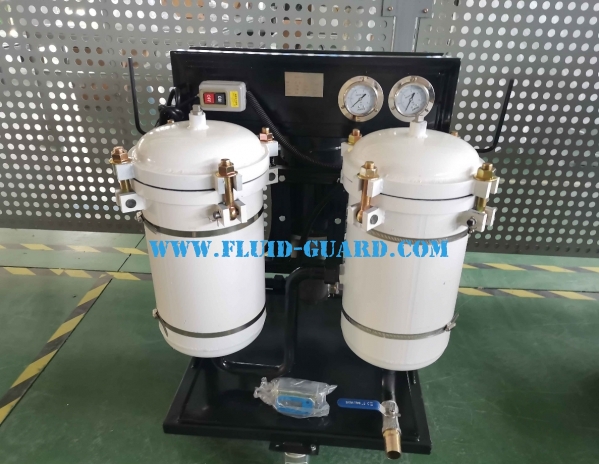

Low noise, strong self-priming ability AOP-A25 movable portable oil purifier

Different precision for the fine filter can be chosen according to the different needs of users to achieve the required results.

The oil filter housing adopts a quick-opening structure. No special are needed to quickly open the upper cover and replace the filter element.

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element during working.

Structure characteristics

End cup

Top design quick structure, easy to change filter element.

Filter element
Selected high-precision filter material, large filter area, keep up with the international advanced structural design.
Connect
All adopt hydraulic pipe joint, reliable connection and sealing, zero leakage.
Loadable frame:durable
Wheel
High quality polyurethane wheel, famous brand bearing, stable operation, no noise.
Electric control
It adopts magnetic starter and thermal relay protection, which can effectively protect the motor and is durable.
Suction filter
High strength woven net is used to protect the oil pump from damage.
Pressure indication
Pressure gauge is set to indicate system pressure and prompt to replace filter element in time.

Oil pan
Helps keep workplace safe.
Gear pump
Internal gear pump, quiet operation, reliable performance, long service life.
