Working Feature:

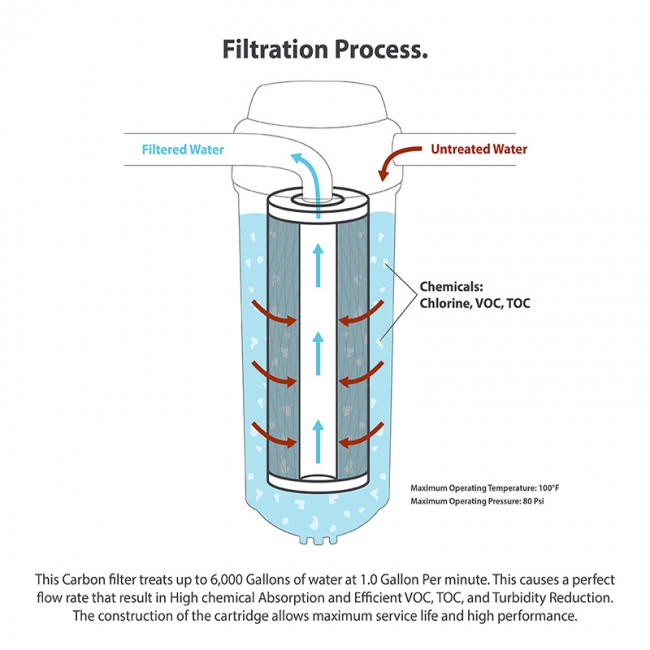

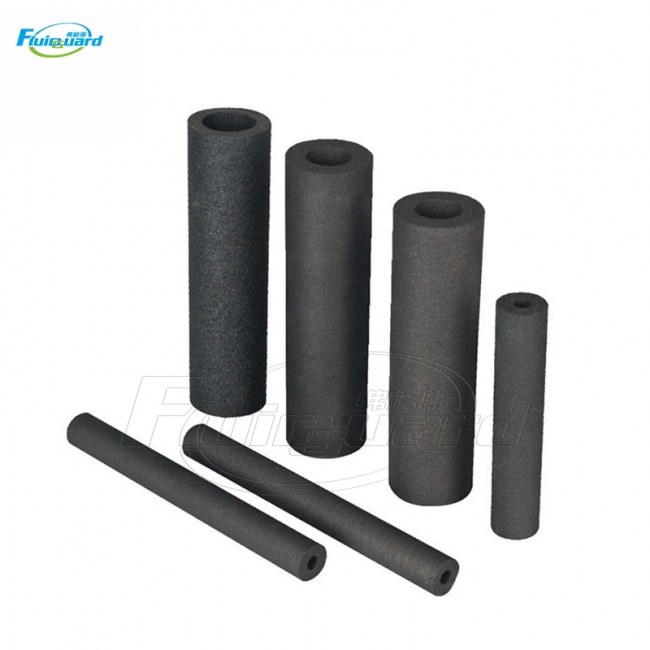

Fluidguard activated carbon water filter is a recently developed element for depth filtration, having activated carbon particles mixed with adhesive and sintered together under fairly high temperature, and then shaped by squeezing continuously.
Fluidguard activated carbon water filter element has an excellent capacity to absorb contamination like particulate, rust, residual chlorine, peculiar smell, color, organic compound from water with typical character as a tubular element.
Technical Parameter:
Product name | Activated carbon water filter |
Working pressure drop | 0.1~0.2kgf/cm |
Max pressure borne | 7kgf/cm |
Max differential pressure | 4kgf/cm |
Max working temperature | 60°C |
Max flow rate | 8LPM@10’’ with 0.15kgf/cm dp |
Surface area | 800~1000m2/g |
Dimension | ID: 30mm; OD: 65mm, 115mm |
Length | 10’’, 20’’, 30’’, 40’’ |
Iodine absorption value | 900mg/g |
Benzene absorption value | 20~25% |
Methyl blue absorption value | 13~16ml/g |
COD removal rate | 58.25% |
Residual chlorine removal rate | ≥96.83% |
