Product Details
Working Feature:

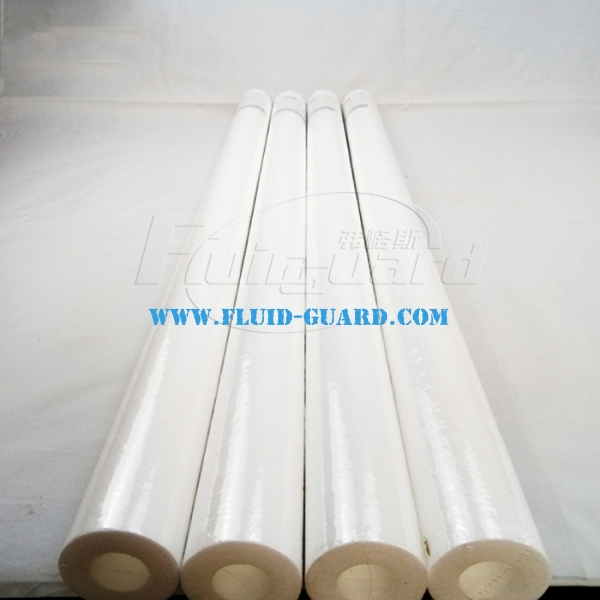

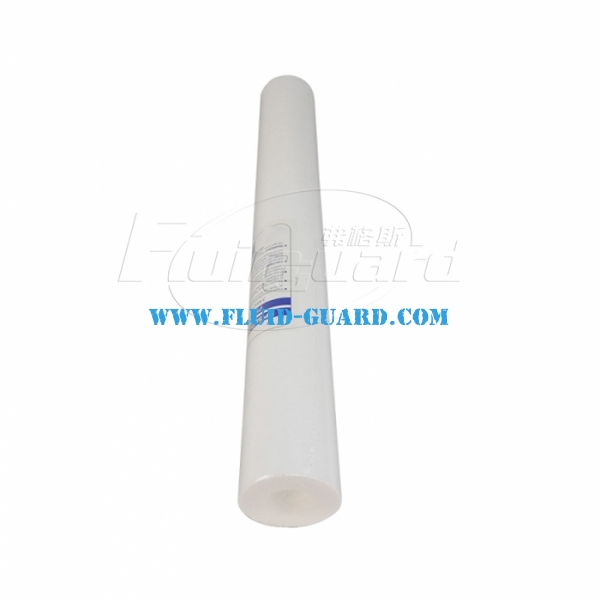

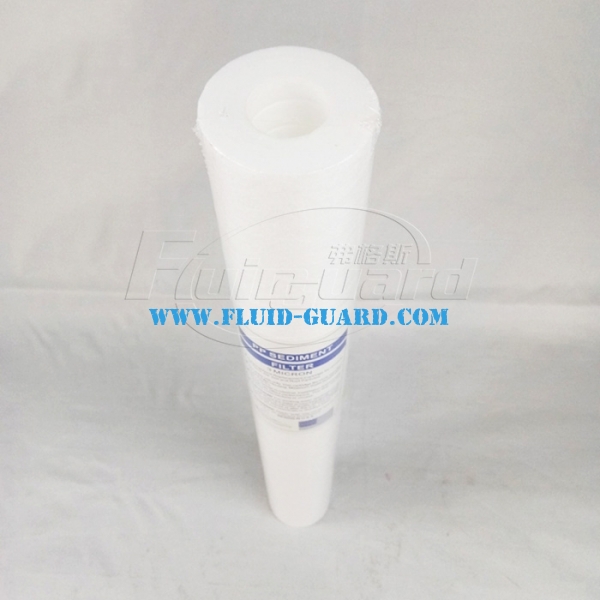

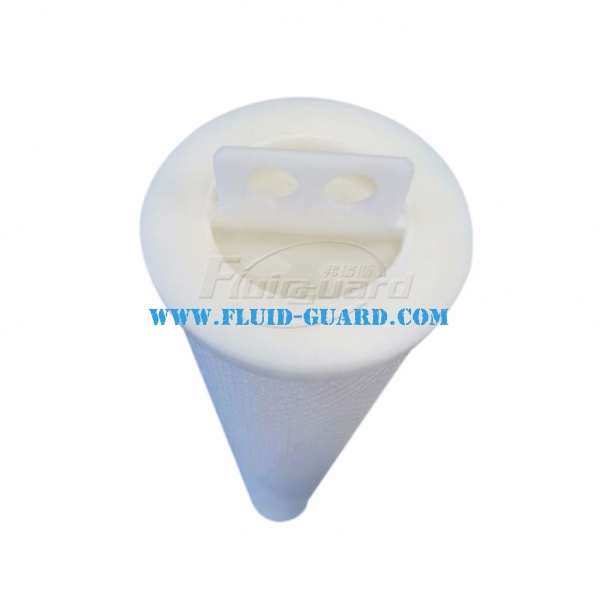

Fluidguard melt blown filter is constructed by melt super fine polypropylene (PP) circled around the core without any chemical adhesive.
The PP fiber randomly forms three dimensional micro-porous structure, which can provides surface, depth, and coarse filtration all by itself.
Large dirt-holding capacity, high filtration accuracy, and small differential pressure are available by its fiber densification & thinness. Besides, Gradually densified structure and lessened pore size help to guarantee an effective filtration for particle removal like suspended matter, particulate, rust etc, and make it a longer service time.
Technical Parameter:
Product name | Melt blown water filter |
Dimension | OD- 63mm, 115mm; ID- 28mm, 30mm |
Length | 10”, 20”, 30”, 40” |
Material | Polypropylene (PP) |
Cap End | Polypropylene (PP) |
Core | Polypropylene (PP) |
Gasket/Seal | Silicon rubber, EPDM,NBR, Fluororubber |
Filtration rating | 1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um |
Max operation temperature | 65°C |
Max pressure difference | 2.0Bar@ 21°C |
Zhengzhou Fluidguard Machinery Equipment Co., Ltd. TEL: 0086-0373-5128206
Zhengzhou Fluidguard is a collection of filter strainer, filter element, oil purifier and air compressor design and manufacturing, online sales and marketing as one of the modern manufacturers
