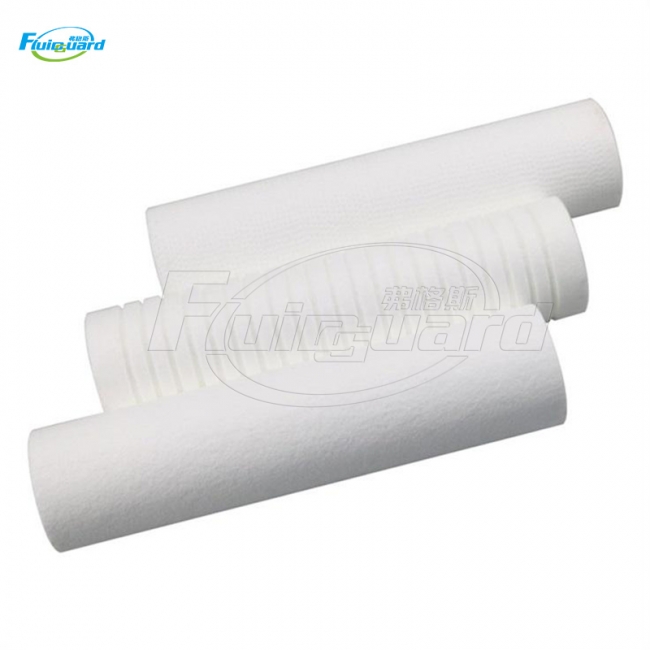

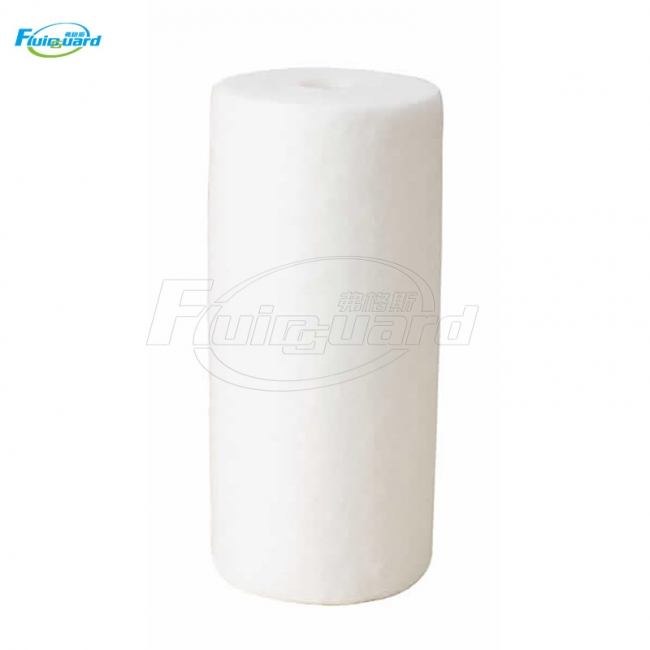

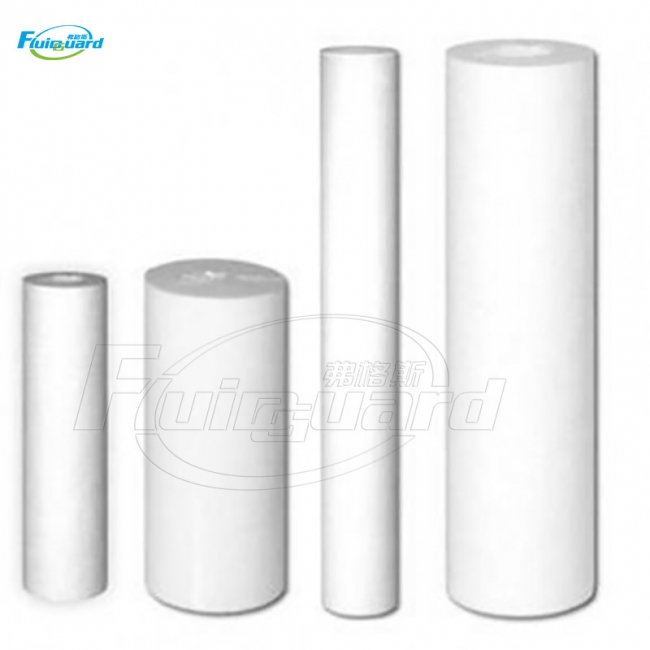

High Efficiency Membrane Solutions 5 Micron Sediment Water Filter Replacement Polypropylene Cartridge

High Efficiency Membrane Solutions 5 Micron Sediment Water Filter Replacement Polypropylene Cartridge

Features:

Get Quotation

Product Details

Working Feature:

Fluidguard melt blown filter is constructed by melt super fine polypropylene (PP) circled around the core without any chemical adhesive.
The PP fiber randomly forms three dimensional micro-porous structure, which can provides surface, depth, and coarse filtration all by itself.
Large dirt-holding capacity, high filtration accuracy, and small differential pressure are available by its fiber densification & thinness. Besides, Gradually densified structure and lessened pore size help to guarantee an effective filtration for particle removal like suspended matter, particulate, rust etc, and make it a longer service time.

Technical Parameter:

Product name

Melt blown water filter

Dimension

OD- 63mm, 115mm; ID- 28mm, 30mm

Length

10”, 20”, 30”, 40”

Material

Polypropylene (PP)

Cap End

Polypropylene (PP)

Core

Polypropylene (PP)

Gasket/Seal

Silicon rubber, EPDM,NBR, Fluororubber

Filtration rating

1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um

Max operation temperature

65°C

Max pressure difference

2.0Bar@ 21°C
