Product Details
Working Feature:

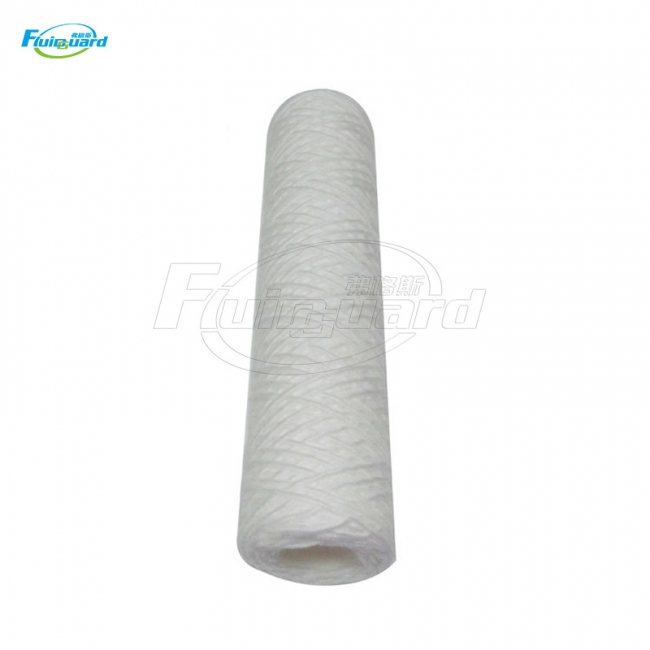

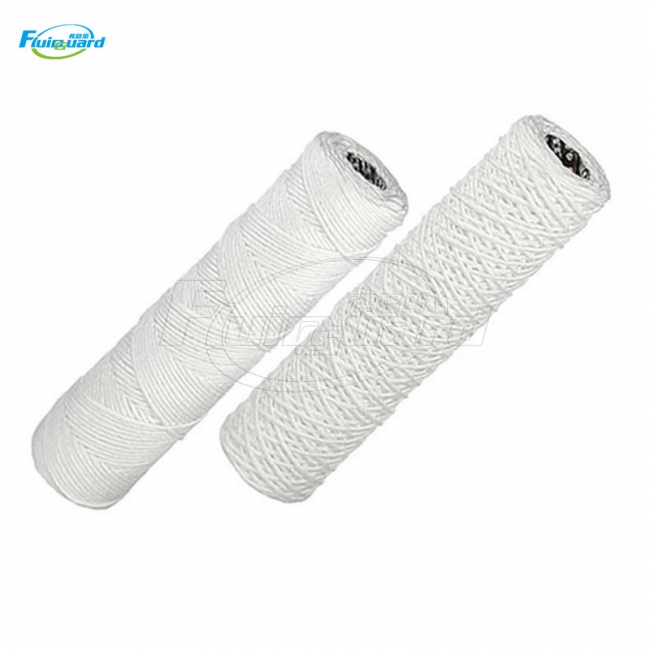

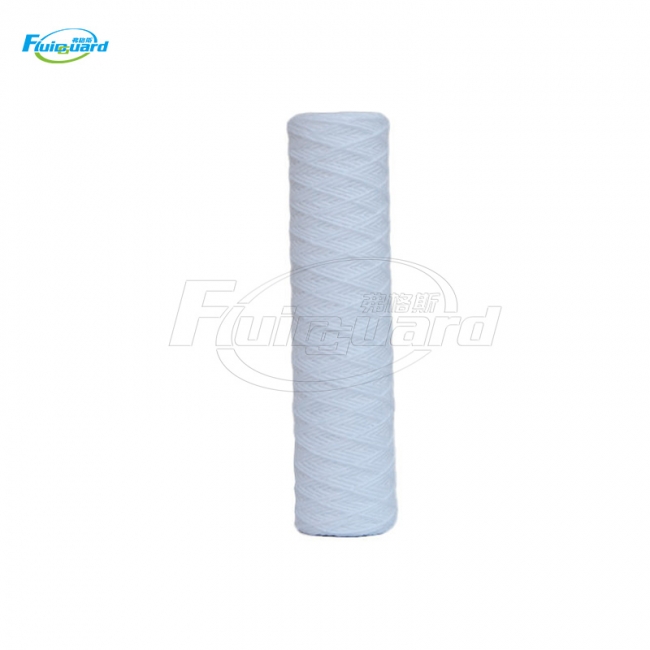

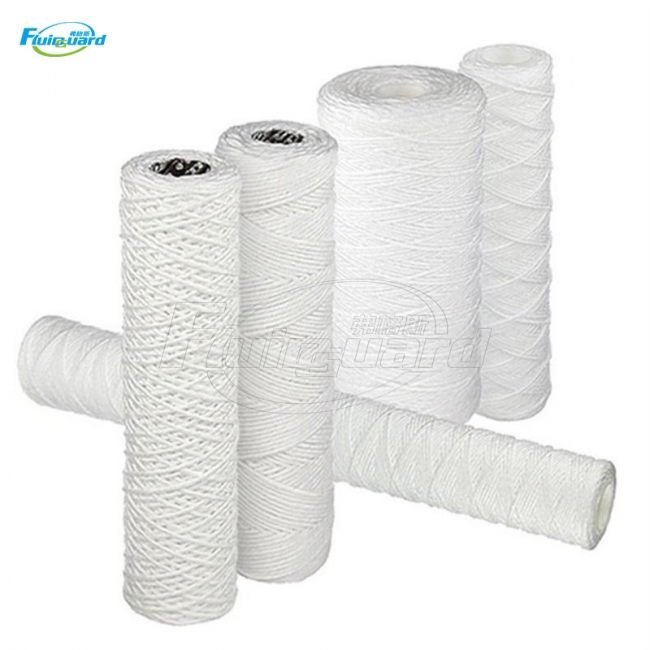

Fluidguard String wound filter element is made of textile fiber yarn tightly circled around a porous core according to a specific process, which from a honeycomb structure with spare outside and dense inside and has very good filtration features, so can remove suspended matter, rust, particles effectively from fluids.
PP string wound filter elements can be applied to many chemical fluids like acid, alkali; Absorbent cotton filter element with a stainless steel core inside can be applied to organic solvents, water, oil, alkali fluids, beverage, medicine etc.
Technical Parameter:
Product Name | String wound water filter |
Dimension | OD- 63mm, 115mm; ID- 28mm, 30mm |
Length | 10”, 20”, 30”, 40” |
Material | Polypropylene (PP), absorbent cotton, fiberglass |
Supporting Core | Polypropylene (PP), stainless steel |
Filtration rating | 1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um |
